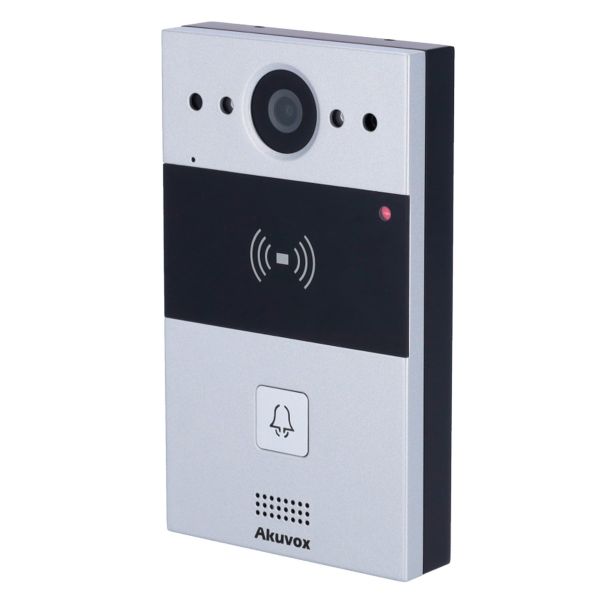

Akuvox IP POE Video Intercom Plate R20A Integrated Card Reader

SKU
AK-R20A
Brands: Akuvox
€182.95 Tax included
11% Discount for professionals
Akuvox
Availability: On request
1 to 7 days
Be the first to review this product

Akuvox IP Video Intercom Panel with MF/EM Card Reader

Entrance panel for surface installation, with IP connection, 2Mpx wide-angle camera and card reader.

This plate is ideal for apartments or houses. It is a very discreet plate that you can install on the wall easily, it has everything necessary for surface installation.

It has a built-in speaker and microphone for excellent communication. Night vision, with integrated EM/MF and NFC card reader, ideal for keyless door opening.

The plate is silver in color made of aluminum alloy, it has LED lighting on the button panel. It can be easily integrated into surveillance recorders, thanks to the fact that it integrates the ONVIF protocol.

Remote access via SmartPlus mobile app or web browser. It has remote access via cloud, with up to 4 free users.

The board is powered via a 12V or POE IEEE802.3af adapter.

Box contents:

*Video intercom exterior panel
*Instructions for use
*Mounting material

-
+

Technical Specifications of the Akuvox IP Video Intercom Plate with MF/EM Card Reader



Brand Akuvox
Model R20A
Access control Door opening with EM RFID 125 kHz, MF 13.56 MHz and NFC cards, with records
RFID user capacity 5.000 card(s)
Keypad Mechanical call button with configurable LED illumination
Outputs 2 of relay for main locks, Wiegand OUT and RS485
Inputs 2 pushbutton and Wiegand IN inputs
Remote access SmartPlus cell phone application or configuration via WEB browser
Remote access by Cloud: Included
Image sensor 1/2.7" 2 Megapixel CMOS with infrared sensor and light sensor
Viewing Angle 110° (H) / 58° (V)
Camera resolution 1920x1080 - 25fps / CIF, QCIF, VGA, 4CIF, 720p, 1080p
Video encoding H.264 y H.265
Audio Two-way audio with noise-reduced microphone and speaker with Crystal Clear Audio technology
Audio Format SIP v1 (RFC2543), SIP v2 (RFC3261), G.711a, G.711μ, G.729, G.722
DTMF (RFC2833), SIP Info
Network interface Ethernet 10/100 BaseT / RS485 / RTSP
Mode of operation Local network and/or via cloud in different networks
Firmware updates Remote with cloud via installer account or via web browser locally
Material Aluminium alloy
Degree of protection IP65
Temp. operation -40º C ~ +65º C
Dimensions 145 (H) x 85 (W) x 27.5 (D) mm
Power DC 12 V / 1000 mA máx. / IEEE802.3af PoE
Weight 800 g
More Information
More Information
Hight 0.000
Length 0.000
Width 0.000
System IP
SERIE MIFARE, RFID/EM
Color Silver
Product Brand Akuvox
