Amiko X-Finder 3 Field Meter Combo

The new field meter Amiko X-Finder 3 is a digital measurement tool for satellite, terrestrial and cable signals, multimedia player and portable receiver with CI slot, card reader and ethernet connection.

This field meter has WIFI support through USB, BER (Bits Error Rate - Number of bits received incorrectly) and MER (Modulation Error Rate).

Amiko X-Finder 3 is a field meter capable of automatically detecting the corresponding satellite of the input signal, without the need to select it previously.

-
+

The field meter AMIKO X FINDER V 3 is a digital field meter for satellite, terrestrial and cable signals.

What technical characteristics AMIKO X FINDER V 3?

  • Satellite, terrestrial T2 / T and cable signal measurement
  • Full-function portable decoder
  • 7 "color screen
  • A built-in card reader Conax
  • A common interface slot
  • BNC for analog camera input
  • Satellite search support (blindscan)
  • Spectrum analyzer
  • Calculation of satellite dish angle
  • Constellation measurement
  • Calculation and display of dynamic error rate
  • USB 2.0 high speed connection
  • Multimedia playback (MP3, MP4, MKV, AVI, MPG, etc.)
  • Ethernet connection
  • Compatible with USB WiFi (chipset Ralink RT5370)
  • Full HD video output (1080p) through HDMI
  • 12V DC output connection
  • Unicable and DiSEqC 1.0, 1.1, 1.2 and USALS support
  • Remote controller included
  • Car charger included
  • Built-in support foot
  • Easy management and transfer of databases through USB
  • Easy software update via USB and Internet
  • Technical specifications:
  • Main processor: 800 MHz CPU
  • Flash memory: 64 Mbits
  • DDR RAM: 2048 Mbits
  • Satellite tuner:
  • Tuner type: DVB-S / DVB-S2
  • MER
  • BER
  • Input connector: type F connector, female
  • Frequency range: 950 MHz - 2150 MHz
  • Signal level: -65 to -25dBm
  • Power LNB and Polarization: Vertical: + 13V; Horizontal: + 18V; Current: 300mA max; Overload protection
  • 22KHz Tone: 22 ± 1KHz
  • DiSEqC control: Amplitude: 0.6 ± .02V; Version 1.0, 1.1, 1.2, USALS
  • Demodulation: QPSK, 8PSK
  • Input symbol speed: 2-45Mbps, convolution code speed
  • FEC: 1/2, 2/3, 3/4, 5/6, 7/8, 1/4, 1/3, 2/5, 3/5, 4/5, 8/9, 9/10
  • Terrestrial tuner:
  • Tuner type: DVB-T / DVB-T2
  • Input connector: IEC type connector, female
  • Signal level: compatible with Nordig, compatible with DBOOK
  • FEC: DVB-T: Viterbi + Reed Solomon 1/2, 2/3, 3/4, 5/6, 7/8; DVB-T2: LPDC + BCH 1/2, 3/5, 2/3, 3/4, 5/6
  • Frequency range: 47-862MHz
  • Demodulation: QPSK, 16QAM, 64QAM, 256QAM (rotated and not rotated)
  • Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
  • FFT mode: 1k, 2k, 4k, 8k, 16k, 32k normal and extended
  • Channel bandwidth: 6/7 / 8MHz
  • Output power of the antenna: 5V 50mA max
  • Demodulation: COFDM 2K / 8K
  • BER
  • Cable tuner:
  • Tuner type: DVB-C
  • Input connector: IEC type connector, female
  • Frequency range: 47-862MHz
  • Signal level: -20dBmV - + 20dBmV
  • Bandwidth: 8 MHz
  • Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
  • Input symbol speed: 1.5 - 7Ms / s
  • BER
  • MPEG TS A / V decoding:
  • Transmission of transport: MPEG-2, H.265
  • Input speed: max. 120Mbit / s
  • Aspect ratio: 4: 3, 16: 9
  • Video decoding: MPEG-2, MP @ ML, MPEG-4 part10 / H.264, H.265
  • Audio decoding: MPEG-1 layer I / II, MPEG2 layer II, Dolby Digital, AAC
  • Audio mode: left, right, stereo, mono
  • Sampling rate: 32, 44.1, 48 KHz
  • A / V and data input / output:
  • Video In: BNC type, analog video input
  • USB: high speed USB 2.0 connection (Type A)
  • HD OUT: HDMI View 1.3, type A
  • Ethernet: RJ45 10 / 100M
  • Power supply:
  • Input voltage: AC 100-240V 50 / 60Hz
  • Output voltage: DC 12V 4.5A max
  • Power consumption: 48W maximum
  • Battery: 7.4V 6.3 Ah
  • Charging time of the battery: 3.5 hours
  • Battery discharge time: up to 6-7 hours
  • Physical specifications:
  • LCD screen: 7 inches
  • Size: 275 mm x 175 mm x 50 mm (WxHxD)
  • Net weight: <2.0Kg
  • Operating temperature: 0 - + 45 ° C
  • Storage temperature: -10 - + 70 ° C
  • Storage humidity: 5% -95% RH (without condensation)

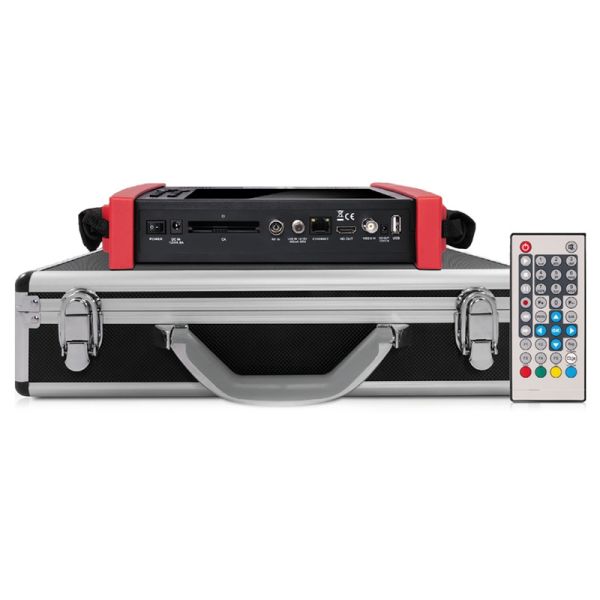

  • Product content:
  • Suitcase of transport constructed in Black color aluminum.
  • Field Measure AMIKO X-FINDER 3
  • Power Supply 220V outlet
  • Power supply 12V cigarette lighter socket
  • Remote control
  • Converter power cable Jack Hollow large to small
More Information
EAN 5999883023853
Hight 0.410
Length 0.100
Width 0.270
System Field Meters
SERIE Economical
Color Black
DVB-C Yes
DVB-S Yes
DVB-T Yes
Fibra No
CCTV No
Product Brand Amiko
