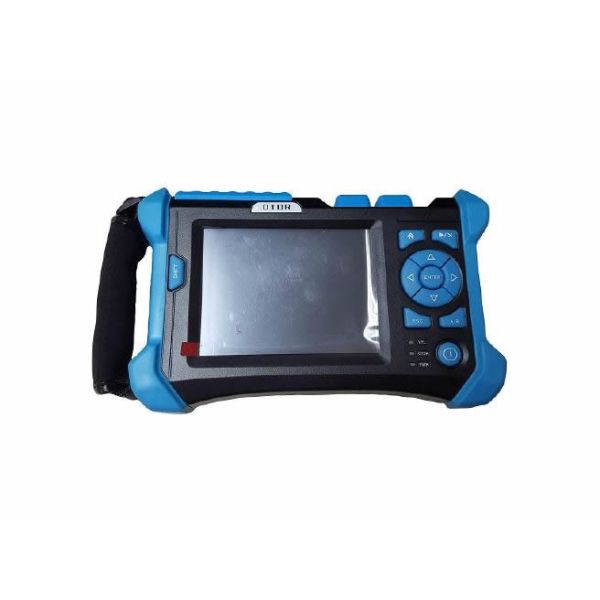

AMP949 Ampliantena Fiber Optic OTDR

The Ampliantena AMP949 OTDR allows the detection of possible faults in fiber optic networks.

What technical features does the OTDR AMP949 have?

• Designed for FTTx applications.
• Integrated visual fault locator (VFL).
• It is the ideal tool for the installation and maintenance of fiber optic networks.
• Able to locate faults with incredible accuracy.
• It has a robust design and easy and intuitive operation.
• 6.5 "touch screen color LCD.
• Adjust screen brightness and standby time.
• Excellent battery life up to 10 hours ideal for field work.
• It has USB and SD interfaces to transfer and store data easily and conveniently.

What technical specifications does the OTDR AMP949 have?

• Wavelength (nm) 1310/1550
• Dynamic range (dB) 32/30
• Pulse duration (s): Automatic; 5, 20, 40, 80, 160, 320, 640, 1280, 2560, 5120, 10240, 20480
• Blind zone (m) 3m
• Linearity ± 0.05 dB / dB
• Loss threshold (dB) 0.05
• Sampling Resolution Ratio (m) 0.125 to 8
• Sampling Points 32000
• Uncertainty (m) ± (1 m + 5 × 10-5 × distance + sample interval)
• Range (km) 0.3 to180
• Typical Refresh Time (s) 0.2
• Measurement duration: Defined by the user; 5s, 10s, 15s, 30s, 1min, 2min and 3min are selectable
• FC / UPC optical interface
• USB data interface and SD card for data dump and storage respectively
• Wavelength 650nm
• Output power ≥-3 dBm
• Maximum test distance 3km
• Dimensions 150 × 235 × 66mm
• Weight 1.5kg
• Operating Relative Humidity 0% - 95%
• Operating Temperature -10 ℃ - 50 ℃
• Battery Lithium battery; Continuous working time ≥ 8 hours
