4e Mast amplifier UHF 30dB, 30dB UHF VHF 20dB 1e, 1e FI 2dB Engel AM6304

Name: 4e Mast amplifier UHF 30dB, 30dB UHF VHF 20dB 1e, 1e FI 2dB Engel AM6304
Brand: Engel Axil
SKU: ENGAM6304
Price: 20.93 EUR
Availability: InStock

SKU

ENGAM6304

Brands: Engel Axil

€20.93 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

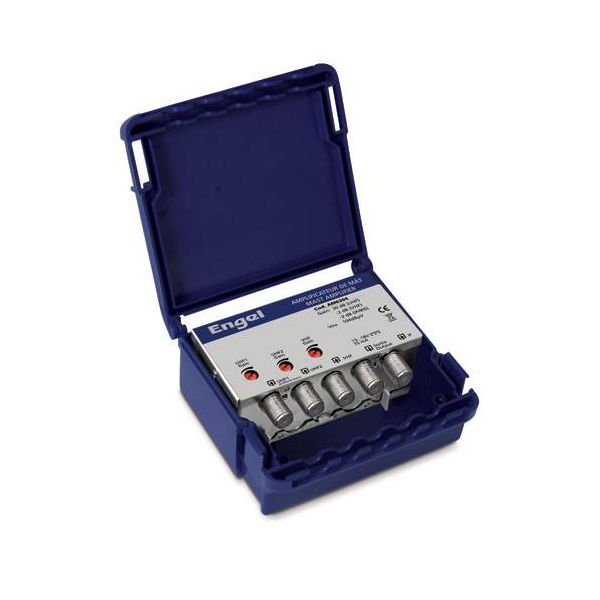

UHF-UHF-VHF-FI mast amplifier. Ref. AM6304 from Engel.

Multiband mast amplifier with satellite IF signal mix. High output voltage, adjustable gain by bands and low noise factor. With this amplifier you can mix the terrestrial signal with the satellite in a single cable.

It is provided in a sealed anticorrosive box and electromagnetic shielding. Source with Terr/Sat diplexer and with power supply and 22Khz to the LNB. (Source not included see ref. AL6126)

Amplifier with dual 13v or 18v power supply with DC/22Khz/Diseqc pass to the LNB and with 12V power supply to the antenna preamp.

Details

Technical Specifications of the UHF-UHF-VHF-FI mast amplifier. Ref. AM6304 from Engel.

*Multiband mast amplifier with satellite IF signal mix.
*High output voltage, adjustable gain by bands and low noise factor.
*Anticorrosive sealed box and electromagnetic shielding.
*Amplifier with dual power supply (13 or 18V), with DC/22 KHz/DISEQC pass-through to the LNB and with 12V power supply to the antenna preamp (AN6304).
*Source with Terr/Sat diplexer and with power supply and 22KHz to the LNB.
*Gain of UHF1(30dB)-UHF2(30dB)-VHF(-2dB)-IF(-2dB).
*104dBV output voltage.
*Amplifier power supply 13/18Vdc.
*AL6126 power supply: 13Vdc/280mA-step DC/22KHz.

More Information

More Information
EAN	8413173248322
Hight	0.200
Length	0.070
Width	0.130
DTT System	Amplificador TDT y SAT
MANUFACTURER SERIES DTT	F-connector
Color	Silver
Type	Mast amplifier
Entorno	Interior
Input signal	FI, UHF, VHF
# Inputs	4
Max. output level Ganancia (dB/uV)	104
LTE compatible	No
Current bypass	Satellite, Terrestrial
Product Brand	Engel Axil
