Mast amplifier kit AMP-LTE304L and FA-MAX24160 power supply for UHF band

SKU
TDT0064
Brands: Tecatel
€24.43 Tax included
16% Discount for professionals
Tecatel
Availability: On request
1 to 7 days
Be the first to review this product

Mast amplifier kit AMP-MAX304LTE and FA-MAX24160 power supply

This kit contains the mast amplifier AMP-LTE304L of Tecatel with 30 dB of gain and LTE 5G filter + the power supply of Tecatel FA-MAX24160. It is ideal for amplifying the signal from your system very effectively, thus receive an optimal signal to display the channels on your TV without any problems.

Kit adapted to the 2nd digital dividend to amplify only terrestrial signals, the amplifier includes 1 UHF input, LTE2 filter and current pass to feed active antennas. Latest generation equipment with low noise figure.
-
+

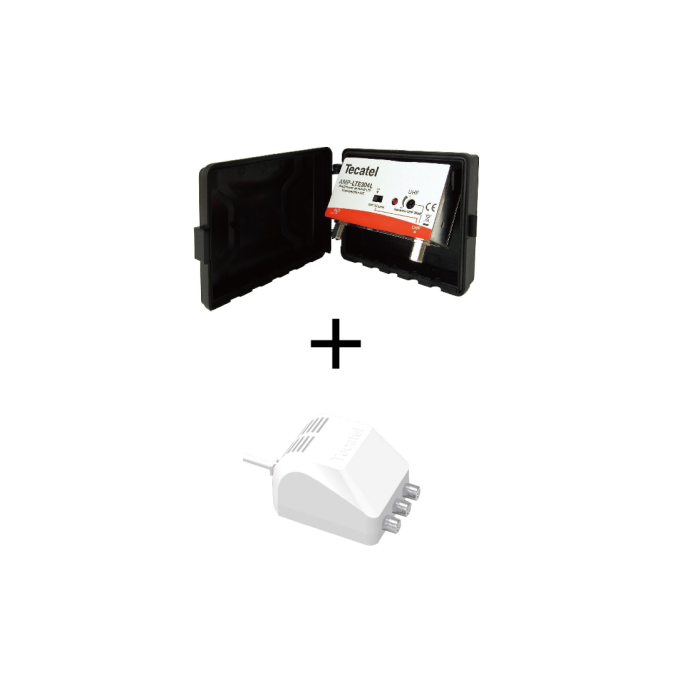

Mast amplifier kit containing the FA-MAX24160 power supply and the AMP-LTE304L amplifier by Tecatel.

What technical specifications does the Tecatel AMP-LTE304L mast amplifier have?

Input ports 1x UHF
Frequency range 470 - 694 MHz
Gain 30 dB
Gain adjustment 15 dB
Output level DIN45004B-60 105 dBμV
Noise figure ≤ 2 dB
Connector F Female
Power supply 24 VDC
Power consumption 48 mA
DC pass Yes
Protection level IP55
Dimensions 135 x 95 x 40 mm
Weight 100 gr



What technical specifications does the Tecatel FA-MAX24160 power supply have?

  • Frequency range: 5 - 862MHz
  • Insertion losses: 3-4 dB
  • Input voltage: AC195-240V 50 / 60Hz
  • Output voltage: 24V
  • Maximum output current: 160mA
  • Number of RF inputs: 1
  • Number of RF outputs: 2
  • Working temperature range: -5 ~ 55ºC
  • Indice de protección: IP20



More Information
More Information
EAN 8431340000016
Hight 0.000
Length 0.000
Width 0.000
DTT System DTT
MANUFACTURER SERIES DTT Kit
Color Black
Type Mast amplifier
Entorno Exterior
# Inputs 1
Outputs 1
Gain 30
Max. output level Ganancia (dB/uV) 102
LTE compatible No
Current bypass Terrestrial
Product Brand Tecatel
