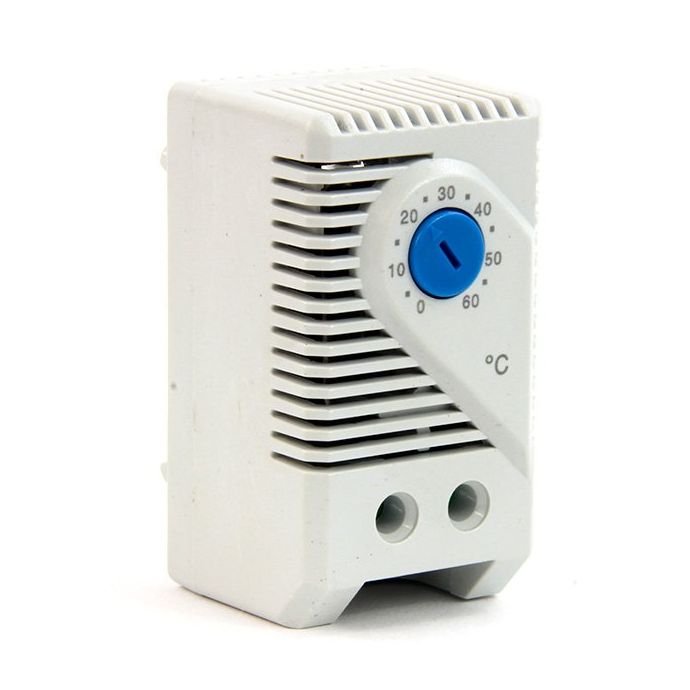

Analog Thermostat for Rack

Technical Specifications of the Analog Thermostat for Rack

Connection temperature: 0 to +60ºC +/- 5ºC

Probe: Thermostatic Bimetal

Contact Class: Escape Contact

Lifespan: >100,000 cycles

Maximum connection power:

250Vac, 10A resistive load or 2A inductive load

120Vac, 15A resistive load or 2A inductive load

30 W at 24 Vdc or 72 Vdc

Maximum connection current: AC 16 A for 10 seconds

Connection: 2-pole terminal, tightening torque 0.5Nm max. Rigid cable 2.5mm2 (AWG 14), stranded cable 1.5mm2 (AWG 16)

Fixing: 35mm DIN rail clip, EN 60715

Housing: Plastic according to UL94 V-0, light gray

Mounting Position: Variable

Service/Storage Temperature: -45 to + 810ºC (-49 to + 176ºF)

Operating/storage humidity: max. 90% RH (non-condensing)

Degree of protection: IP20

Dimensions: 10x6x5cm

Weight: 0.3kg
