Articulated support for LCD TV 13" - 27"

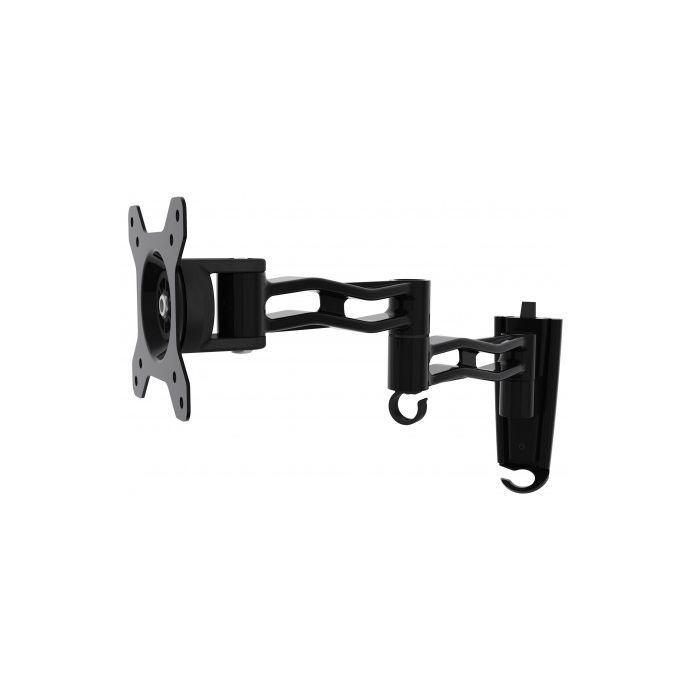

Daxis Double Articulated LCD TV Stand 13"- 27". Ref SV0166.
The Daxis SV0165 bracket is designed for mounting LCD TVs from 13" to 27" on the wall and supporting a maximum weight of up to 20Kg. Distance from the wall from 77 to 380mm.
The support has a double articulated arm with a 15º tilt on both sides and a 360º rotation. The support is composed of two parts, on the one hand the mobile part is fixed to the TV through screws, it is compatible with VESA 75X75 and 100X100. And on the other hand, we find the fixing base that we will install on the wall, so that it will be fixed.
The mobile arm is anchored to the fixed base, so that the installation is much easier to perform, since we do it separately and we only have to fit the two pieces through the guide so that it is perfectly fixed, thanks to its safety lock.
This system is ideal if we want to move the TV to different places, because we can put two fixed bases on the wall of different rooms and move the TV along with the mobile arm.
The support is made of black aluminum, with an excellent quality.
