ATSC 3.0 AND DVB Universal Field Meter for Broadcast

SKU
PROATLASNG
Brands: Promax
€12,269.40 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

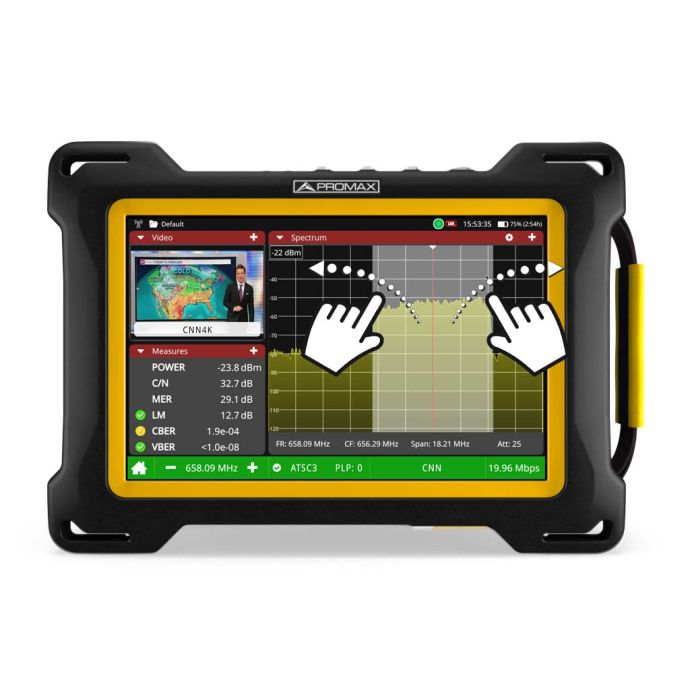

Promax Atlas NG Field Meter

This professional meter meets all the requirements for the most demanding installer. It is a multi-function tool loaded with features that cover the most severe broadcast requirements. This broadcast field meter is capable of reaching up to 6GHz covering the S and C bands.

This meter is an all-in-one tool, capable of performing a complete diagnosis of 3G-SDI signals, including professional audio analyzer and eye diagram, and has an external SDI input for this, in addition to the standard ASI input/output.

It has a 10” multi-touch screen and a robust, easy-to-hold design. Very easy to use. It has interference reduction in wireless networks, 4K UHD video demodulation, supports the HDMI 1.4 protocol.

The applications for this meter are very wide: TV/data broadcasting, air, sea and banking communications, online government, return lines in remote areas or critical operations, airborne radar altimeters, weather stations, intelligent transportation systems, etc. . A 6GHz spectrum analyzer is essential to identify and evaluate why systems and services are being disturbed by interference.

-
+

Especificaciones Técnicas del Medidor de Campo Atlas NG de Promax



SPECIFICATIONS ATLAS NG - NEW GENERATION BROADCAST FIELD METER
BROADCASTING STANDARDS
Radio and Digital Terrestrial Television Digital cable
Analog digital satellite
DVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full sec / 1sec), ATSC 1.0, ATSC 3.0, DAB, DAB+ DVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM
DVB-S, DVB-S2, DVB-S2x, DSS, QPSK
Terrestrial analogue, FM RDS
SCREEN 10.1” multi-touch 16:9 color TFT. 850cd/m²
INPUTS AND OUTPUTS - Universal RF input (N type, female 50 Ω) - Optical input (FC/APC, female)
- ASI/SDI input and output (BNC female, 75 Ω 3 Gbps) - Reference 1 PPS / 10 MHz
- SPF+ connector - IPTV input (Ethernet RJ45 10/100/1000 Mbps)
- Analog audio/video input (3.5 mm jack) - Stereo headphone output (3.5 mm jack)
- HDMI output (v1.4b up to 3840x2160 pixels @30 Hz) - USB 3.0 host (type A-type USB-CDC devices)
-USB 2.0 (Type C). Storage and remote commands - CAM (DVB-CI compliant, CAM module input)
- Ethernet (RJ45) for webControl and remote commands
REMOTE CONTROL remote commands. webControl interface (IP and WiFi control input) and SNMP protocol (IP and WiFi control input)
FUNCTIONS - Constellation diagram - Beacon-Flyaways SNG and VSAT - GPS coverage analysis (included)
- LTE interference test - Wideband LNB - Video and Audio Streaming
- Dynamic echo analysis - WiFi - SCAN + TILT
- StealthID (instant identification - LTE 1.8 GHz - TS recording
of digital parameters) - OTT - Analysis of TS
- PLS (Physical Layer Scrambling) - Service recording - IPTV measurement and decoding
- Ultra fast spectrum analyzer - Multicast field strength measurement
- 4K Decoder - Task Planner - Shoulder Dimming
- Maximum and minimum hold - Merogram - Network delay
- Measurements and decoding of - Spectrogram - DVB-T2 analysis MI Radio FM RDS - Signal monitoring - Eye diagram (SDI)
- Screenshots and Datalogger - Remote control (webControl) - ALP recording
for measurement reports - MER per carrier - Carrier frequency drift
- 8 GB memory, expandable by USB
TV ANALYZER MODE
Frequency range Measurements
FM RDS
analog terrestrial TV
Digital terrestrial TV (according to standard) Optical LNB
Video Codecs Sound Codecs Transport Stream
45 to 1000 MHz (terrestrial), 250 to 2350 MHz (satellite). Frequency resolution 1 kHz.
Level, Freq. Deviation (MPX, L+R, L-R, L/R/stereo pilot/RDS pilot), ITU-R SM.1268-2/SM. Histogram 1268-4 Level, C/N, V/A Ratio (PAL/SECAM/NTSC M/N/B/G/I/D/K/L)
Power, CBER, VBER, MER, C/N, LBER, Link Margin, BER, BCH ESR, LDPC iterations, PER, SER, Noise Margin, C/N 1310/1490/1550 nm, Optical to RF Converter (terrestrial/ satelite)
H.265 4k UHD, H.264 4k UHD, MPEG-4 HD/SD, MPEG-2
MPEG-1, MPEG-2, AAC, HE-AAC, Dolby Digital, Dolby Digital Plus. Digital and analog demodulation MPEG-2 protocol, max recording bitrate 200 Mbps (8 GB internal memory, expandable via USB)
TS Analyzer: PSI/SI Tables, Bitrate Graph by Service, Alarm Logging and Analysis (ETSI TR101 290 v1.2.1)
SPECTRUM ANALYZER MODE From 5 MHz to 6 GHz. Measurements: Power, C/N, Frequency. Includes 4 delta markers with frequency and level measurement.
IPTV MODE
Measurements Characteristics
Up to 4 simultaneous multicast/unicast streams (reception, measurement and recording) Jitter, packet rate, histogram+jitter, Inter Packet Arrival Time
IGMP v1/v2/v3, VLAN support, Multicast Discovery, Video/Audio playback, T2MI&BTS reception
SDI OPERATING MODE Input/Output 3 Gbps. Compatible with SD-SDI, HD-SDI and 3G-SDI. Statistical eye diagram,
CRC error detection, Monitoring of 16 AES3 audio channels, LPCM Sound Volume Meter
WIFI ANALYZER MODE Spectrum analyzer + WiFi dongle
OTT ANALYZER MODE Supports MPEG-DASH and HLS. Codecs H.265, H.264, MPEG-2, VP8, VP9, MVC, WMV9, JPEG/MJPEG, VC-1
ASI-TS MODE Support TS, T2MI, BTS
OUTDOOR UNIT POWER SUPPLY 5/12/13/15/18/24 V + 22 kHz (satellite band) with DiSEqC 1.2/2.2, SaTCR/SCD (EN50494), dCSS/SCD2 (EN50607)
FEEDING
Autonomy
External 12 V power supply or internal 7.4 V 18.3 Ah Li-po battery with LED status indicator
> 4 h with intelligent energy management
ACCESSORIES INCLUDED External 12 V power supply, car power cable, quick guide, RF adapters, GPS, reinforced hard carrying case
DIMENSIONS AND WEIGHT 304 (W) x 218 (H) x 83 (D) mm, 3.4 kg
OPTIONS OP-006-PS Optical fiber: Selective optical meter + Optical to RF converter OP-006-FM Advanced measurements for FM radio
OP-006-DAB Advanced measures for DAB/DAB+ digital radio
