Autonomous Access Control EM Card, PIN and WiFi Outdoor App AC109 by Safire

SKU
SF-AC109-WIFI
Brands: Safire
€47.43 Tax included
Availability: In stock
24/48 Hours

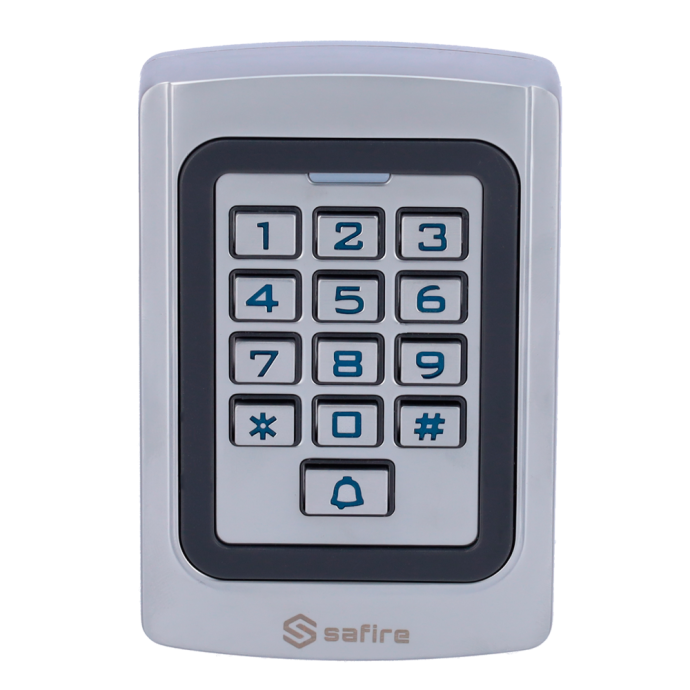

Safire AC109 WiFi Standalone Access Control EM Card, PIN and Outdoor App

This access control is very complete, with access by EM card, password, mobile application and a combination of these. Access by card is 125KHz RFID proximity and PIN access through the keyboard. You can also access through the Tuya Smart App for remote management and openings.

It has a metal casing, prepared to be installed outdoors for access to buildings. It is also vandal-resistant, which provides us with even more security.

It has a signaling and acoustic LED and NO/NC relay outputs, push button and bell. It has push-button and reader inputs. It also has opening and closing time control.

It has a storage capacity of up to 2000 cards/passwords.

Its Wiegang 26 communication is a communication protocol created by the HID company, it is a unidirectional communication that allows the transmission of data between a reader (card) and a controller (access control). This technology is very similar to that used with credit cards, a magnetic strip stores the data that is read by the reader. But it also allows communication via WiFi, making it much more versatile.

Package content:

Safire Standalone Access Control Keypad
Installation material
Instructions for use

-
+

Technical Specifications of the Safire AC109 WiFi Outdoor EM Card and PIN Standalone Access Control

Brand Safire
Model SF-AC109-WIFI
Capacity Up to 2.000 cards/passwords
Identification modes Card, PIN, App and combinations
RFID proximity card EM 125 kHz
Inputs/outputs NO/NC relay, push button and buzzer
Communication Wiegand 26 and WiFi
Power DC 12 V
Consumption in idle mode ≤ 30 mA
Degree of protection Suitable for exterior IP68
App Tuya Smart
Functions through APP User creation through App (only permission 24h) / Temporary codes / Remote openings
Temp. operation -40º C ~ +60º C
Dimensions 75 (W) x 110 (H) x 25 (D) mm
Weight 600 g
More Information
EAN 8435325474243
Hight 0.050
Length 0.120
Width 0.080
System Card Reader
SERIE Wiegand
Color Silver
Installation Outdoor
Identification EM Card/Keychain, Password
Product Brand Safire
