Autonomous Multiswitch 5Ex12S Sat/Terr Antenna Extension

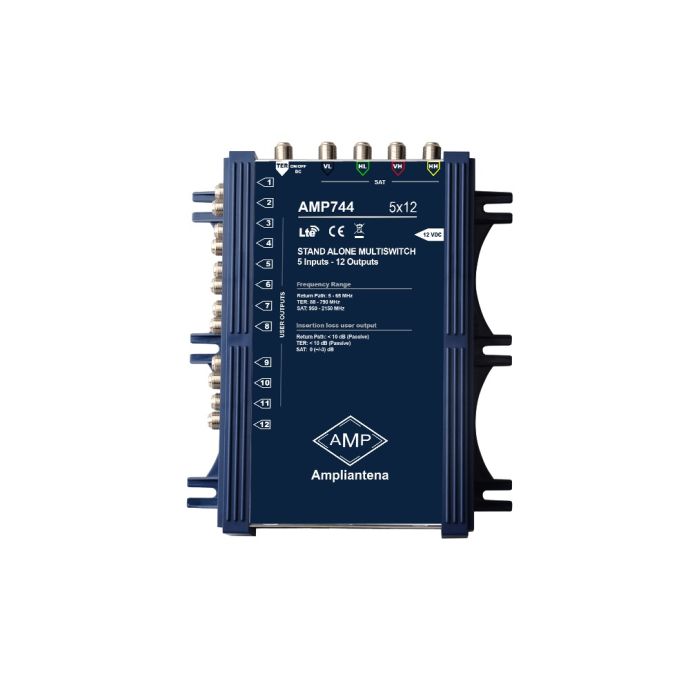

Ampliantena 5 Inputs and 12 Outputs Multiswitch AMP744

This Ampliantena multiswitch has 5 inputs (4 are satellite and 1 is terrestrial), being able to manage the 4 polarities of a complete satellite. In the output we find 12 outputs that will mix the satellite signals with the terrestrial one to distribute it to the users. It can be used in large communities or in small installations.

The multiswitch works as follows: a multiswitch works as a matrix, so that it redirects to each house the input signal demanded at each moment. The receiver, depending on the TV channel selected by the user, will send a voltage through the coaxial cable for polarization (13Vdc for vertical and 18Vdc for horizontal) and a tone for the band (0KHz for low and 22KHz for high). The AMP742 will be able to manage a complete satellite (H/L, H/H, V/L, V/H).

The multiswitch allows each home to have access to the radio signal, DTT and all satellite polarities, without having to install a satellite dish per user.

This device needs a 12V and 1.5A power supply to work, in our website you can find this ALI2A compatible power supply, as it is not included with the multiswitch.
