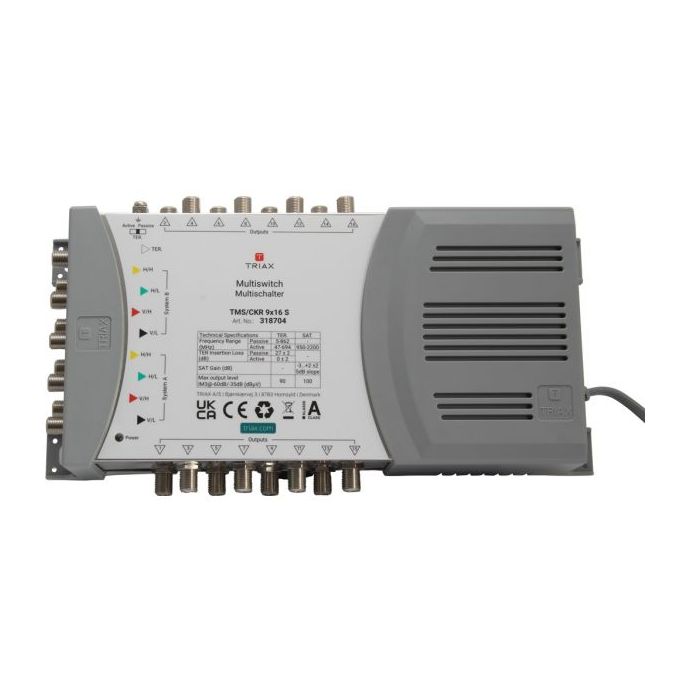

Autonomous multiswitch 9Ex16S sat/terr 318704

Name: Autonomous multiswitch 9Ex16S sat/terr 318704
Brand: TRIAX
SKU: TRITMS/CKR9x16S
Price: 243.21 EUR
Availability: InStock

SKU

TRITMS/CKR9x16S

Brands: TRIAX

€243.21 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

Autonomous multiswitch 9Ex16S sat/terr

This multiswitch is a signal distribution element, both terrestrial and satellite, valid for small homes or medium-sized buildings. It has 9 inputs, 1 for terrestrial signal and 8 for satellite signals with the different polarities available: high horizontal, low horizontal, high vertical and low vertical. And with 16 outlets.

Compact and small design that can only be improved with its excellent performance and flexibility.

The multiswitch is self-contained, so no external power supply is required. It has color-coded input labels to make the installer's job easier, as well as power LEDs.

With this multiswitch you must use a Quatro type LNB.

It features low power consumption, high isolation and minimal insertion loss.

Details

Technical Specifications of the Autonomous Multiswitch 9Ex16S sat/terr

What specifications does the Multiswitch with 9 outputs and 16 inputs Reference 318704 have?

ORDER INFORMATION

EAN Number

5702663187047

ELECTRICAL

Impedance

75 Ω

CONNECTORS

Connector Type	F-female
Number of inputs	5
Subscriber outputs	16
Power connector	EU main plug
Colorcoding @IF/TER inputs	VL=Black, VH=Red, HL=Green, HH=Yellow, White=TER

CHARACTERISTICS

LNB type	Quattro
Max. input level - SAT (IMD3 - 35dB)	98 dBµV
Max. input level - TER (IMD3 - 60dB)	90 dBµV
Max. output level SAT @ -35 dB IMD3	100 dBµV
Max. output level TER @ -60dB IMD3	90 dBµV
LNB current max.	1000 mA
Switch commands	DiSEqC 1.0/2.0, 13/18V, 0/22kHz

FREQUENCY RANGE

Frequency range TER	Active: 47…694 / Passive: 5...862 MHz
Frequency range SAT	950…2200 MHz

GAIN

Gain - SAT (with 5 dB slope)	-3…+2 ± 2 dB
Gain - TER	0 ± 2 dB

LOSS

Tap loss TER

27 ± 2 dB

ISOLATION

Isolation SAT to TER	30 dB
Isolation cross polarisation H/V	30 dB
Isolation out-out SAT	30 dB
Isolation out-out TER	25 dB

RETURN LOSS

Return loss SAT inputs	>10 dB
Return loss TER inputs	>10 dB
Return loss TAP outputs	>10 dB

OPERATIONAL

AC Supply voltage	180…264 VAC
ESD protection	4KV inputs & sub outputs
Power Consumption (typ.)	3.5W max. TER active 2W max. TER passive W
Max. current pass per F-connector	2000 mA
Max. current to each output (supplied by set top box)	<50 mA
Control LEDs	Green LED (Power)
Temperature - operating	-20…+55 °C

MECHANICAL

Main material	Steel housing
Packing QTY	1
Product Height	270 mm
Product Width	140 mm
Product Depth	65 mm
Packaging Height	0.070 m
Packaging Width	0.330 m
Packaging Depth	0.150 m
Packaging Volume	0.000 m3
Net Weight	0.885 kg
Tara Weight	0.165 kg
Total Weight	1.050 kg
