Video balun for 4 HDTVI / HDCVI / AHD / CVBS cameras with BNC connectors for long-distance video transmission (180 - 440 meters) using 1 UTP cable through RJ45 output or through 4-pin +/- terminals.
4 BA612P-HAC baluns are also included to connect to each camera.
The maximum transmission distance depends on the resolution and the video format.

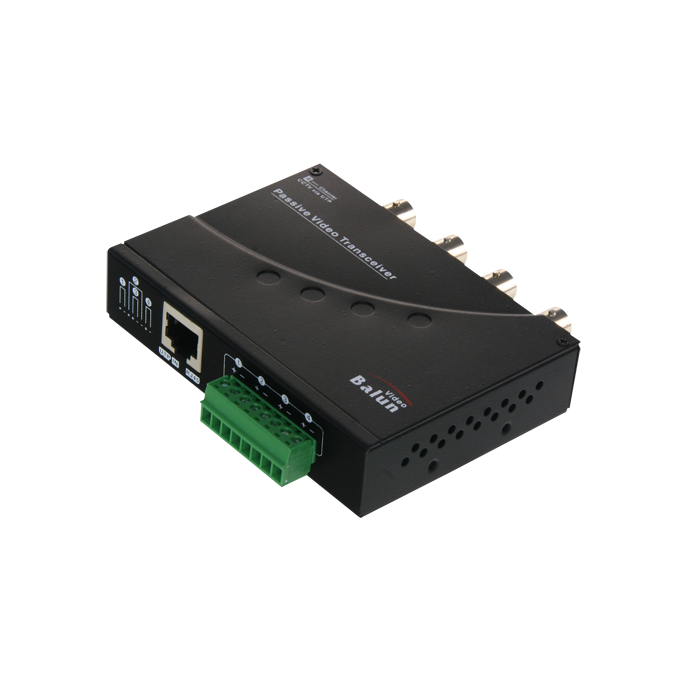

Passive video transceiver by twisted pair of 4 channels, optimized for high definition video HDTVI / HDCVI / AHD / CVBS. It can operate as transmitter or receiver, and it permits to transmit the signal of up to four video cameras via a single UTP cable.
The adapter has 4 BNC connectors for connecting to a DVR. Includes 4 individual baluns BA612P-HAC to connect the cameras.
The maximum length between the end that connects to the camera and the end that connects to the video output is :
HDTVI 720p - 200 m
HDTVI 1080p - 200 m
HDCVI 720p - 400 m
HDCVI 1080p - 200 m
AHD 720p - 300 m
AHD 1080p - 300 m
AHD 4 MP - 300 m
HDTVI 4 MP 100 m
HDCVI 4 MP 200 m
HDTVI 4K 100 m
HDCVI 4K 200 m
Rack mount possibility 19".
What technical specifications does the BA614P-HAC 4-channel balun have?
Input Tx / Output Rx
4 female BNC connectors for video
Output Tx / Input Rx
1 connector RJ45 or 4 connectores with clamps for the UTP-cable CAT5
Bandwidth
DC up to 42 MHz
Video format
NTSC, PAL, SECAM
Impedance
BNC 75 Ω, UTP 100 Ω
Transmission distance
HDTVI 200/200/100/100 m (720p/1080p/4 Mpx/4K), HDCVI 400/200/200/200 m (720p/1080p/4 Mpx/4K) AHD 300/300/200 m (720p/1080p/4 MP), CVBS 300 m
