Black CAT6 FTP Cable Outdoor CCA CPR FCA in 1000m Reel by Nimo

SKU

WIR9117

Brands: NIMO

Availability: On request

Delivery: 1 to 7 days

€401.61 Tax included

NIMO 1000m Black Outdoor Category 6 Outdoor FTP Data Cable

This data cable is designed for use in outdoor network installations for voice, image and high speed data transmission up to 100Mbps. It can be used in both horizontal and secondary outdoor cabling installations between rosettes and distribution centers or patch panels.

The cable is a category 6 structured twisted pair FTP type, tested and manufactured according to TIA/EIA 568-A/B specifications, EN50173, ISO 11801, EN50288, EN50167, EN50168 and EN50169.

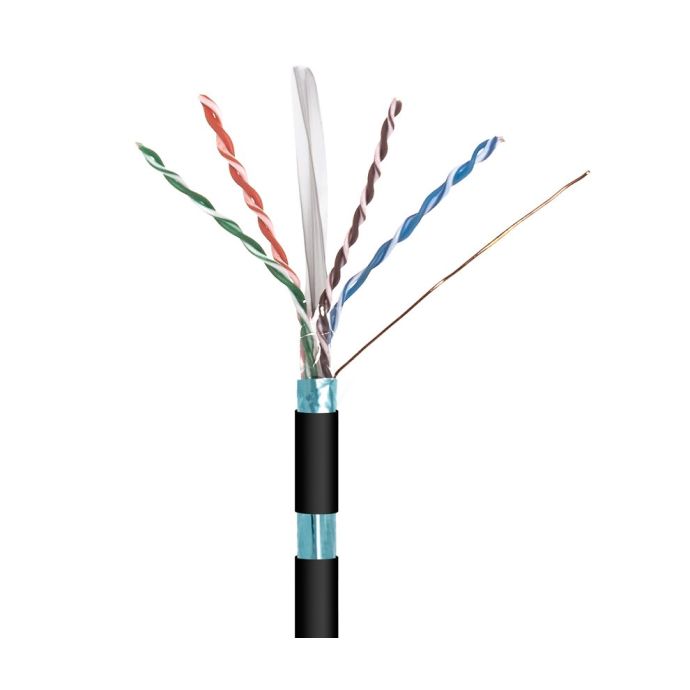

The cable has 4 twisted pairs of color-coded 24AWG rigid conductor with solid polyethylene insulation. The 4 pairs are in turn twisted together to improve cable performance. The outer jacket is made of UV and water resistant black PE. The cable comes with ripcord for easy stripping of the cable.

The wooden spool has a total length of 1000 meters. Along the cover, the cable reference, characteristics and a decreasing meter marking system are indicated to know how much cable is left on the spool.

Details

Technical Specifications of the NIMO 1000m Black Outdoor Category 6 FTP Data Cable

Technical characteristics

APPLICATION	Outdoor network installation
CLASS CPR	Fca
CONDUCTORS	2x4 pairs 0.57mm (AWG24) CCA, Rigid
EMB	1/1
OUTDOORS	6.2 ±0.2mm Diameter, Black PE UV waterproof
CABLE LENGTH	1000m, Wooden reel
NORMATIVE	CE, RoHS y CPR
NOTE	Tear thread and pair separator crosshead
SCREEN	Drain thread and aluminum foil
PRESENTATION	Wooden spool
TYPE	Cat.6 FTP data cable

More Information

More Information
EAN	8445577009193
Hight	0.000
Length	0.000
Width	0.000
System	CAT6
Serie	1000m
Entorno	Exterior
Color	Black
Cobertura Exterior Cables	PE
Conductor Interno Cables	Copper Clad Aluminum (CCA)
Product Brand	NIMO
