Broadband Central 3 Inputs: VHF/UHF/SAT 30dB from EK

SKU
EK062008
Brands: EKSELANS
€92.38 Tax included
Availability: On request
1 to 7 days

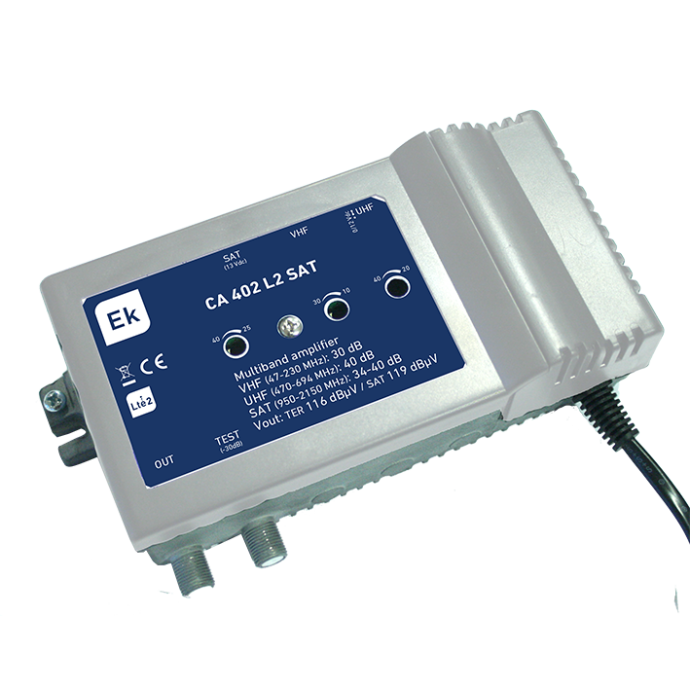

EK Broadband 3 Inputs VHF/UHF/SAT Broadband Central Station

The CA 402 L2 SAT broadband central station is a device that amplifies the terrestrial television signal in collective radio and television installations. It has 3 inputs (UHF/VHS/SAT) with gains of 30dB(VHF), 40dB(UHF) and 34-40dB(SAT) and with an output level of 116dBμV (VHF), 116dBμV (UHF), 119dBμV (SAT).

The broadband central station has independent regulation per input, its gain control adjusts the signal power to avoid being too strong or weak to improve the picture quality and avoid interference.

It also has a high efficiency power supply. And with a test output (-30dB).

It has a compact size and a grounding point. Its installation is very simple, just fix the control panel to the wall with screws (included) and make the connections.

-
+

EK Broadband 3 Input UHF/VHF/SAT Broadband Switchboard Technical Specifications

REFERENCE   CA 402 L2 SAT
Code   062008
Inputs   VHF UHF SAT
Frequency range MHz 47 - 230 470 - 694 950 - 2150
Gain dB 30 40 34-40
Regulation dB 20 20 20
Output level (DIN 45004B) dBµV 114 116 119
Return losses dB >10 >6
Noise figure dB 7 9
Current flow 0/12Vdc switchable mA - 100 -
LNB power supply 13 Vdc (Fixed) mA - - 300
TEST output dB -30
Supply voltage Vac 230 ±10%
Consumption W <9,8
More Information
EAN 8436548996086
Hight 0.000
Length 0.000
Width 0.000
DTT System Amplificador TDT y SAT
MANUFACTURER SERIES DTT F-connector
Color Silver
Type Broadband station
Entorno Interior
Input signal FI, UHF, VHF
# Inputs 3
Outputs 1
Gain 40
Max. output level Ganancia (dB/uV) 116
LTE compatible Yes
Current bypass Satellite, Terrestrial
Product Brand EKSELANS
