Coaxial Cable Cu / Cu Bury Dca 10mm (250m)

Name: Coaxial Cable Cu / Cu Bury Dca 10mm (250m)
Brand: Televes
SKU: TEL214911C
Price: 505.03 EUR
Availability: InStock

SKU

TEL214911C

Brands: Televes

€505.03 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

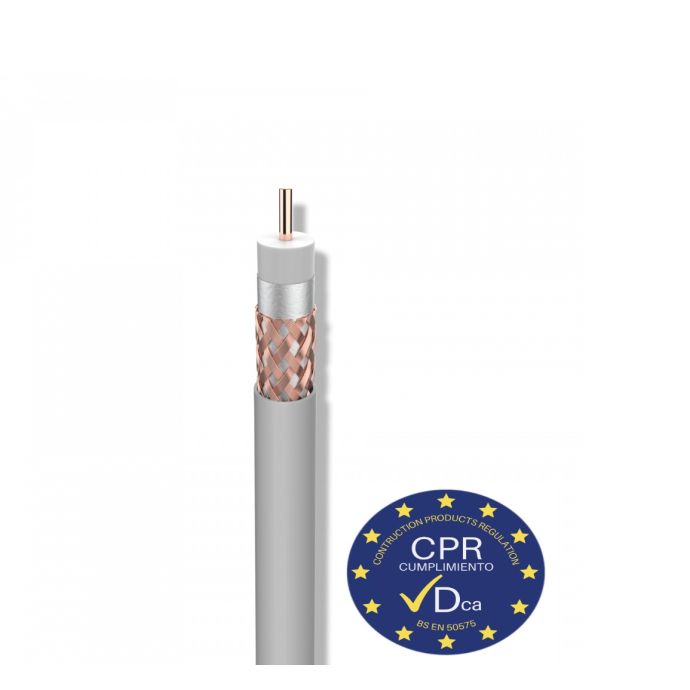

TR165 Coaxial Cable Bury Cu / Cu Class A Euroclass Dca 10mm Televes 214911 (250m)

TR165 Coaxial Cable with conductor and mesh made of copper (Cu / Cu), with gray halogen-free outer jacket LSFH, it can be installed indoors and outdoors but mainly it is made to install underground without damaging the cable and thus not losing signal quality.

Cable made with 2 layers of Class A shielding that offer great shielding against interference that may occur. Its Euroclass Dca classification establishes a good reaction in case of fire by not spreading the flame and a lower emission of heat.

Conductors made of copper offer great response at both low and high frequencies, with the least radioelectric resistance

Details

TR-165 Cu/Cu double shielded Coaxial Cable Class A for Burying with LSFH sheath and Euroclass Dca

What are the main characteristics of the Televes 214911 Coaxial Cable?

Conductors made of copper
Class A shielding
Euroclass Dca-s2, d2, a1
Petro-gel layer
LSFH outer cover, UV resistant, gray
Characteristic impedance of 75 ohm
250m wooden spool

What technical specifications does the Televes 214911 Coaxial Cable have?

Tipo		TR-165
Estándard		EN 50117-2-5
EuroClase		Dca-s2,d2,a1
Clase		A
Conductor central	Ø mm	1,63
	Material	CU
	Res. Ohm/Km	9
Dieléctrico	Ø mm	7,2
Dieléctrico	Material	PEE
Lámina interior		Aluminio + Polipoprileno + Aluminio
Malla	Material	Cu
	Dimensiones (Ncx Nsx Ø)	16 x 8,5 x 0,148
	Res. Ohm/Km	<7
	% cobertura	77
Lámina antimigratoria		No
Petro-Gel		Sí
Cobertura exterior	Ø mm	10,1
Cobertura exterior	Material	LSFH, Resistente UV
Radio de curvatura mínimo	mm	50
Blindaje a 1GHz	dB	>85
Capacidad	pF/m	53
Impedancia	Ohm	75
Impedancia de Transferencia (5-30MHz)	mOhm/m	≤5
Velocidad de propagación mín.	%	84
Atenuaciones (dB/m)
Frecuencia (MHz)
	5	0,005
	47	0,02
	90	0,04
	200	0,05
	500	0,09
	800	0,11
	1000	0,13
	1350	0,15
	1750	0,18
	2050	0,19
	2300	0,21

More Information

More Information
EAN	8424450214251
Hight	0.000
Length	0.000
Width	0.000
System DTT	RG11
Serie	250m
Entorno	Exterior
Color	Gray
Cobertura Exterior Cables	LSFH
Conductor Interno Cables	Copper (Cu)
Material Malla Coaxial	Copper (Cu)
Product Brand	Televes
