Coaxial Cable T200 Cu/Cu Inside PVC Gray (250m)

Name: Coaxial Cable T200 Cu/Cu Inside PVC Gray (250m)
Brand: Televes
SKU: TEL213002C
Price: 306.61 EUR
Availability: InStock

SKU

TEL213002C

Brands: Televes

€306.61 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

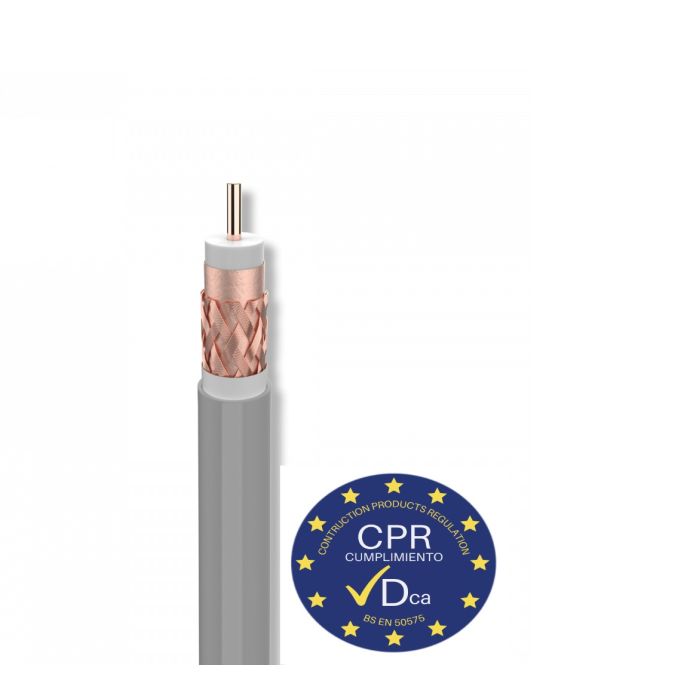

Coaxial Cable T200 Cu/Cu Euroclass Dca Class A LSFH Gray (250m) Televes 213002

75Ω coaxial cable with conductor and mesh made of Copper (Cu/Cu) and gray LSFH Halogen Free PVC outer sheath for indoor installation. Cable supplied in a 250 meter wooden coil.

This cable has an antimigration film that prevents its deterioration over time by preventing the migration of cover additives and moisture into the cable. On the other hand, its Class A double shielding offers good shielding thanks to its high coverage mesh.

The Euroclass Dca classification improves your reaction to fire by not spreading the flame and reducing heat emission and fire growth.

Details

Coaxial Cable T200 Cu/Cu Euroclass Dca Class A LSFH Gray on Wooden Coil (250m)

What are the main characteristics of the Televes 213002 Coaxial Cable?

Copper conductors
Class A shielded
Dca Euroclass
The anti-migrating film prevents sheath's additive agents and humidity migration to the inner conductor, thus avoiding deterioration in the characteristics
Grey-colour external LSFH sheath
75 Ohm characteristic impedance
250 m wood reel

What technical specifications does Televes Coaxial Cable 213002 have?

Attenuations (dB/m)
Type		T-200plus
Standard		EN 50117-2-4
EuroClass		Dca
Class		A
Inner conductor	Ø mm	1,13
	Material	CU
	Res. Ohm/Km	<16
Dielectric	Ø mm	5
Dielectric	Material	PEE
Overlapped foil		Copper + Polyester
Braid	Material	Cu
	Dimensions (Ncx Nsx Ø)	16 x 8 x 0,11
	Res. Ohm/Km	<12
	Coverage %	75
Anti-migrating film		Yes
Petrol-Jelly		No
Outer sheath	Ø mm	6,9
Outer sheath	Material	LSFH
Minimum bending radius	mm	34.5
Screening attenuation @ 1GHz	dB	0.08
Capacitance	pF/m	-
Impedance	Ohm	75
Transfer impedance (5-30MHz)	mOhm/m	≤5
Velocity ratio	%	82
Frequency (MHz)
	5	0,02
	47	0,03
	90	0,05
	200	0,07
	500	0,12
	800	0,15
	1000	0,17
	1350	0,2
	1750	0,23
	2050	0,25
	2300	0,27

More Information

More Information
EAN	8424450161241
Hight	0.000
Length	0.000
Width	0.000
System ICT	RG6
Serie	250m
Entorno	Interior
Color	White
Cobertura Exterior Cables	PVC
Conductor Interno Cables	Copper (Cu)
Material Malla Coaxial	Copper (Cu)
Product Brand	Televes
