25 meters Cable Kit SC/APC, Keystone and Televes Fiber Optic Adapter

SKU
TEL233242
Brands: Televes
€19.82 Tax included
Availability: In stock
24/48 Hours

Televes 233242 Fiber Optic Socket Connection

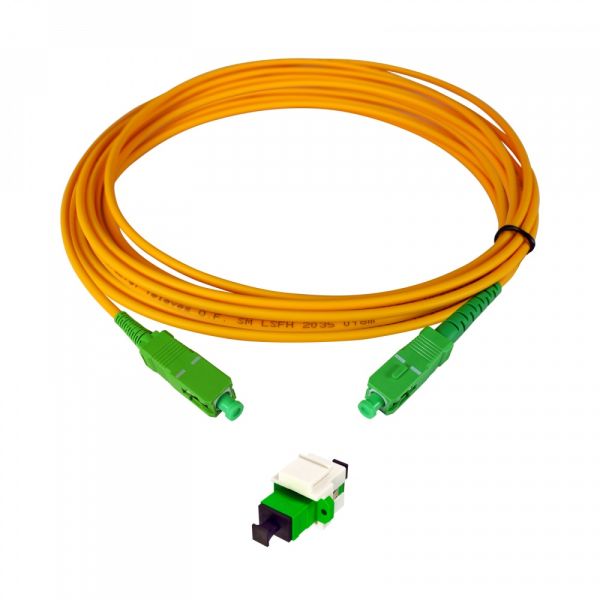

It is a kit made up of: fiber optic patch cord, keystone module and fiber optic adapter. The patch cord is 25 meters long and is pre-assembled with SC/APC connectors. The keystone is compatible with all RJ45 covers, since it is standardized.

The connection is very simple: we insert the keystone module into the network box, pressing until it clicks. Then we do the same with the adapter on the keystone module.

This kit introduces very little insertion loss. In addition, the included fiber optic adapter automatically blocks the passage of light when we remove the connector, ensuring eye protection.

The connectors are of the SC/APC type and the hose is 25 meters long. The module is made of white PVC plastic.

-
+

Technical Specifications of Televes 233242 Fiber Optic Socket Connection Kit

Euroclass   Dca
Euroclass: Smoke Production   s2
Euroclass: Flaming droplets   d2
Euroclass: Acidity   a1
Fiber core type   Single-mode (ITU-T-G.657A2)
Optical fiber type category   OS1
Fiber core diameter μm 9
Fiber cladding diameter μm 125
Coating buffer diameter μm 250
Cable structure   Tight buffer
Plastic buffer diameter mm 0.85
Outer sheath Diameter mm 3
Outer sheath Material   LSFH
Blocking jelly   No
Attenuation 1310nm dB/km < 0.8
Attenuation 1490nm dB/km < 0.8
Attenuation 1550nm dB/km < 0.8
Insertion losses in connector 1 dB < 0.5
Insertion losses in connector 2 dB < 0.5
Return losses in connector 1 dB > 60
Return losses in connector 2 dB > 60
Optical connector type 1   SC
Polishing type (Optical connector 1)   APC
Optical connector type 2   SC
Polishing type (Optical connector 2)   APC
Short tension N 450
Long tension N 200
Structure reinforcement element   Aramid fibers
Short crush (@100mm) N 500
Long crush (@100mm) N 100
Minimum bending radius mm 15
Operating temperature °C -20 ... 70
More Information
EAN 8424450270554
Hight 0.150
Length 0.030
Width 0.150
System DTT Optic Fiber
Serie 25m
Fiber type Singlemode
Entorno Interior
Product Brand Televes
