Caja de Distribución OFP OMX48
SKU
CAJAOMX48
Brands: OFP
Availability:
On request
1 to 7 days

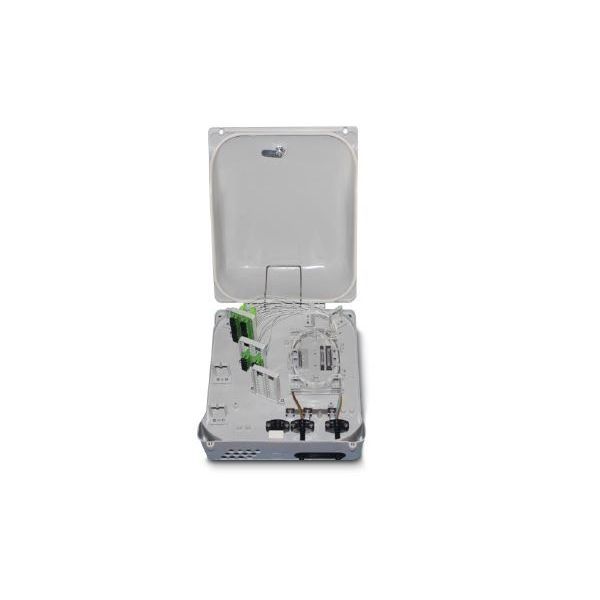

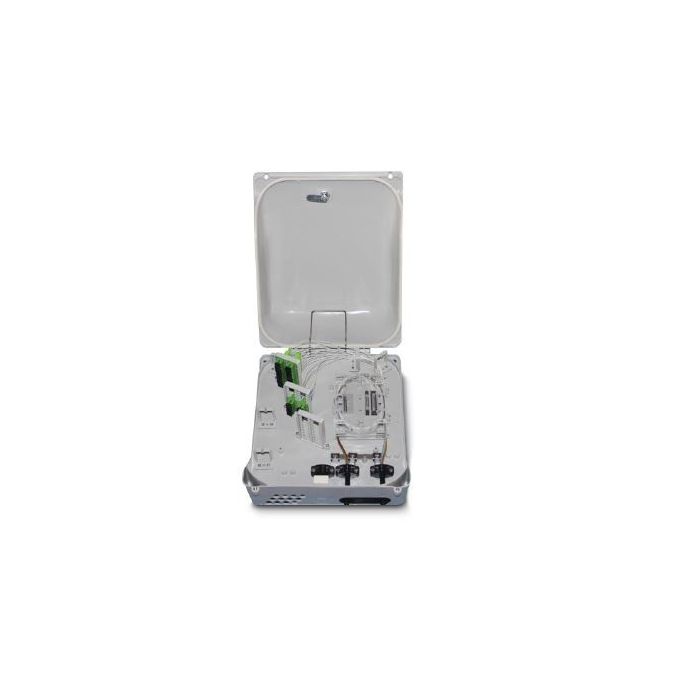

Distribution Box OFP OMX48
This outer box serves as a transition and distribution point to users when splicing CTU/MTU and CTA/MTA type cables to FX-TX or TDS type drop cables. It is a box or secondary plastic register, with an IP65 protection index, which makes it suitable for outdoors, withstanding water or dust well, it is also made of UV-resistant plastic.
It allows the division of the main cable to the drop cables of the subscriber. It is equipped with a security key. It has a main port and an oval entrance port.
As well as an oval port for 1 loop cable or 2 cables of maximum Φ20mm. One port reserved for cables with maximum Φ18mm. 12 ports with diameter of Φ14mm.
The maximum capacity is 144F (6 trays + 24F).
