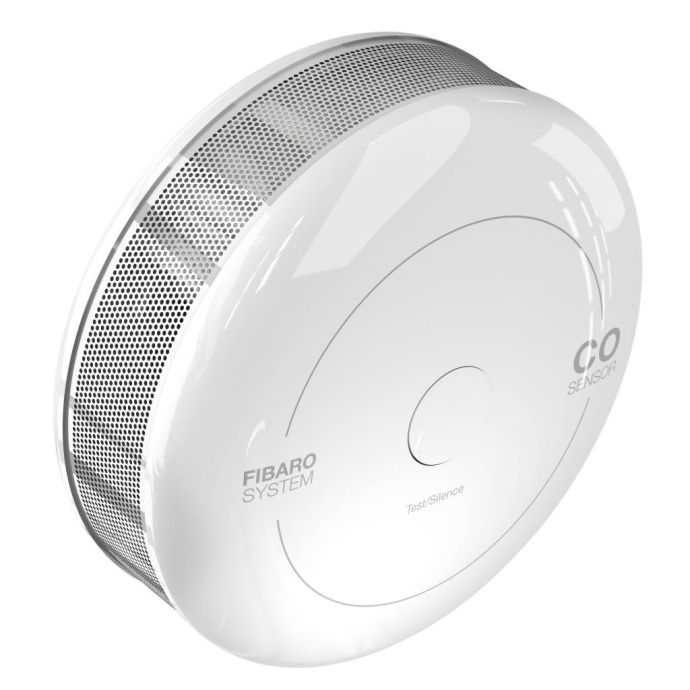

Carbon monoxide sensor FGCD-001 by Fibaro

SKU
FIBFGCD001
Brands: Fibaro
€106.02 Tax included
Availability: In stock
24/48 Hours

CO sensor FGCD-001

The carbon monoxide sensor FGCD-001 from Fibaro is an ultra-light carbon monoxide detector, compact and battery-powered, designed to be placed on the wall.

Its high sensitivity allows detecting the presence of carbon monoxide (CO) gas in the early stages to prevent carbon monoxide poisoning.

The alarm includes a built-in siren, a blinking LED indicator and the sending of commands to Z-Wave network devices.

In addition, the device is equipped with a temperature sensor.

-
+

Technical Specifications of the FGCD-001 CO Sensor

The sensor FGCD-001 of Fibaro allows us to detect the presence of carbon monoxide in our home.

What technical characteristics does the FGCD-001 sensor have?

  • Compatible with any Z-Wave or Z-Wave + Controller.
  • Supports protected mode (Z-Wave network security mode) with AES-128 encryption.
  • Mounted on the wall.
  • It works on battery.
  • Completely wireless.
  • Alarm includes a built-in siren and LED diode.
  • Built-in temperature sensor.

What technical specifications does the FGCD-001 sensor have?

  • Power source: CR123A battery, 3.0V DC
  • Useful life under typical conditions: 8 years
  • Range of measurement of CO concentration: 0 - 450 ppm
  • Measurement accuracy: ± 10ppm / ± 5%
  • Operating temperature: 0 - 50 ° C
  • Operating humidity: 10-95% relative humidity without condensation
  • Sound level of the alarm siren: 85 dBA to 3 meters (10 feet)
  • Alarm response times in default settings: 50ppm 60-90min 100ppm 10-40min 300ppm <1.5min
  • Compliance with EU directives: RED 2014/53 / EU RoHS 2011/65 / EU EN 50291-1: 2010
  • Radio protocol: Z-Wave (chip of the 500 series)
  • Radio frequency: 868.4, 868.42 or 869.8 MHz EU; 908.4, 908.42 or 916.0 MHz US; 921.4, 921.42 or 919.8 MHz ANZ; 869.0 or 869.02 MHz RU;
  • Power of radio signal: up to -5 dBm (PIRE)
  • Distance: up to 50 m outdoors up to 40m indoors (depending on the terrain and the structure of the building)
  • Dimensions (diameter x height): 65 x 28 mm



Technical data

Power supply: CR123A/CR17345 battery, 3.0V DC
Lifespan under typical conditions: 8 years
CO concentration measurement range: 0 – 450 ppm
Measuring accuracy: ±10ppm / ±5%
Operating temperature: 0 – 50°C
Operating humidity: 10-95%RH without condensation
Alarm siren sound level: 85 dBA at 3 meters (10 feet)
Alarm response times on
default settings:
50ppm 60-90min
100ppm 10-40min
300ppm <1.5min
EU directives compliance: RED 2014/53/EU
RoHS 2011/65/EU
EN 50291-1:2010
Radio protocol: Z-Wave (500 series chip)
Radio frequency: 868.4, 868.42 or 869.8 MHz EU;
908.4, 908.42 or 916.0 MHz US;
921.4, 921.42 or 919.8 MHz ANZ;
869.0 or 869.02 MHz RU;
Radio transmit power: up to -5 dBm (EIRP)
Range: up to 50m outdoors
up to 40m indoors
(depending on terrain and building structure)
Dimensions (diameter x height): 65 x 28 mm
More Information
EAN 5902020528838
Hight 0.120
Length 0.040
Width 0.120
System Z-Wave
SERIE Sensors
Color White
Automation Smoke Sensor
Product Brand Fibaro
