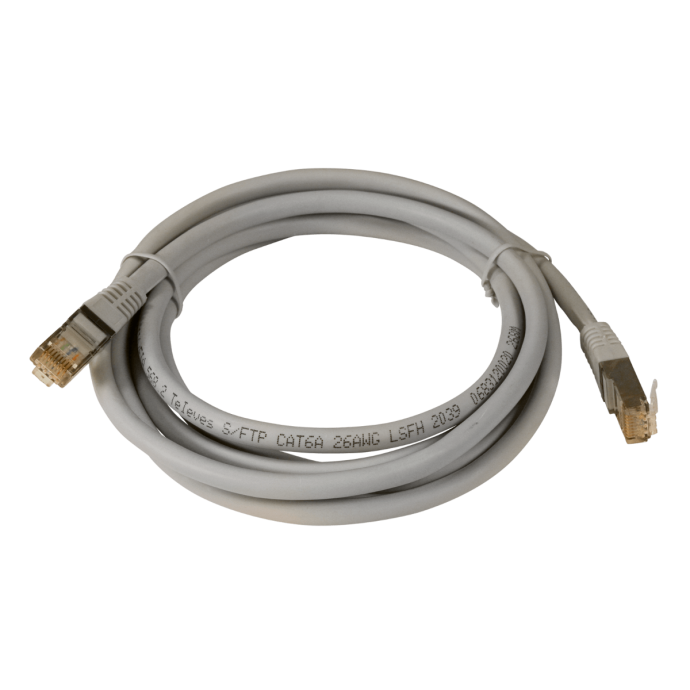

Cat.6A S/FTP Patch Cord RJ45 Copper LSFH Gray 2 Meters

SKU
TEL209103
Brands: Televes
€5.88 Tax included
Availability: In stock
24/48 Hours

RJ45 Patch Cord 2 Meters S/FTP Category 6A LSFH Gray Televes 209103

Pre-terminated RJ45 network cable of 2 meters, type S/FTP and Category 6A. Patch cord with flexible Copper (Cu) conductors and gray LSFH halogen-free cover.

The S/FTP patch cord is a high-shield cable with individual pair-wise and global cable shielding. In addition, it is Category 6A, so it supports high transmission speeds, up to 5 Gbps with bandwidth up to 500 MHz.

RJ45 patch cord with excellent performance, for use in high-speed data networks. It also supports PoE/PoE+ technology to power network equipment through the cable itself.



-
+

2 Meters Network Patch Cord S/FTP Category 6A LSFH Indoor Gray

What technical specifications does the Televes 209103 Patch cord have?

Type
S/FTP
Class
Cat 6A
Conductor Material Flexible copper
Ø (mm) 0.16 ± 0.008
Conductor type AWG 26
Conductor isolation Material Polyethylene
Ø (mm) 1.1 ± 0.03
Shielding foil Material Aluminium + Polyester
Outer shielding braid Material Aluminium
Outer sheath Material Low Smoke Free of Halogen (LSFH)
Ø (mm) 6.2 ± 0.2
Thickness (mm) 0.59 ± 0.05
Color Grey
Nominal impedance Ω 100 ± 5
Max. conductor resistence Ω/Km < 100
Nominal velocity % 79
Working voltage V 300



FREQUENCY ATTENUATION NEXT PS-NEXT ELFEXT PS-ELFEXT RETURN LOSS
(MHz) (dB/100m)
1 4.0 65.0 62.0 63.3 60.3 19.0
4 4.2 63.0 60.5 51.2 48.2 19.0
8 5.8 58.2 55.6 45.2 42.2 19.0
10 6.5 56.6 54.0 43.3 40.3 19.0
16 8.2 53.2 50.6 39.2 36.2 18.0
20 9.2 51.6 49.0 37.2 34.2 17.5
25 10.4 50.0 47.3 35.3 32.3 17.0
31,25 11.5 48.4 45.7 33.4 30.4 16.5
62,5 16.4 43.4 40.6 27.3 24.3 14.0
100 20.9 39.9 37.1 23.3 20.3 12.0
200 30.1 34.8 31.9 17.2 14.2 9.0
250 33.9 33.1 30.2 15.3 12.3 8.0
350 40.6 30.6 27.6 12,4 9.4 6.6
450 46.5 28.7 25.7 10.2 7.2 6.0
500 49.3 27.9 24.8 9.3 6.3 6.0
More Information
EAN 8424450222126
Hight 0.250
Length 0.030
Width 0.200
Manufacturer Televes
System DTT CAT6A
Serie Pre-terminated
Entorno Interior
Color Gray
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper (Cu)
Product Brand Televes
