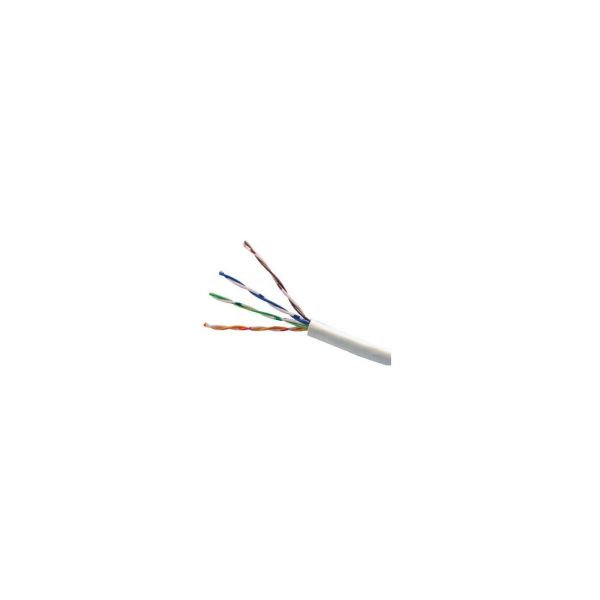

The CAB-UTP5B data cable from Tecatel is a category 5E cable composed of an internal conductor of steely copper or CCA, insulation of high density thermoplastic polyethylene or HDPE.
This data cable is perfect for the installation of data networks, such as internet connection, surveillance camera installations of balums and installations of doormen and video intercoms.
Technical Specifications of the Coil of 305 meters of category 5E UTP data cable.
The Tecatel UTP5B data cable is a data cable for indoor use of category 5E in black color formed by an internal composite of CCA and an outer cover of PVC.
What technical characteristics does the UTP5B data cable have?
Braided cable of 4 pairs unshielded.
Marking of length
Packaged in "reel-in-box".
Guaranteed performance at 100MHz.
Tear cord for easy peeling
What attenuation does the tecatel data cable have?
This CAT 5E data cable has the following attenuation at 100 meters:
Frecuencia
Atenuación/100m
1 MHz
2,0 dB
4 MHz
4,3 dB
10 MHz
6,7 dB
16 MHz
8,1 dB
20 MHz
9,2 dB
31,25 MHz
11,3 dB
62,5 MHz
17,0 dB
100 MHz
22,1 dB
Why is a data cable used?
The Tecatel UTP5B data cable can be used for various installations. This cable can be used for the installation of a data network, such as the connection to the internet, for the installation of a video surveillance circuit by balums or for the installation of a doorphone or video intercom.
How to make our own data cable?
To make the connectorization of a data cable we need the cable in question, RJ45 connectors, a crimper to make the fixation of the connector to the cable and a peeling machine for data cables.
