CATV T0X optical transmitter with automatic gain control 234811 from Televes

SKU
TEL234811
Brands: Televes
€1,841.72 Tax included
Free shipping
(Iberian Peninsula)
Televes
Availability: On request
1 to 7 days

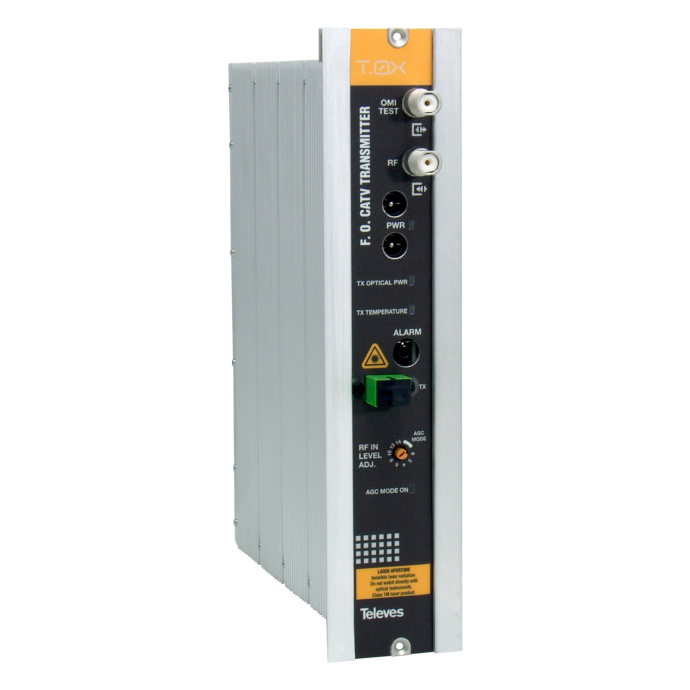

Televes T0X optical transmitter

The Televes optical transmitter T0X 234811 generates an optical signal, in the 1550nm window, modulated by the input RF signal (47 - 1100MHz).

The optical output power is 10dBm.

This transmitter incorporates automatic gain control (CAG).

In addition, it is stable in temperature thanks to its laser temperature control circuit.

The 234811 transmitter is suitable for RFoG solutions and also as an RF Overlay transmitter in GPON networks.

The transmitter 234811 of Televes generates an optical signal, in the 1550nm window, modulated by the input RF signal (47 - 1100MHz).

What technical characteristics does the 234811 transmitter have?

  • Compatible with MATV: bandwidth up to 1100MHz
  • OMI test point (Optical Modulation Index)
  • Leds indicators of optical power and laser temperature
  • MQW-DFB laser refrigerated
  • CAG with LED operating indicator
  • Wide range of input powers
  • Optical power drop alarm
  • Conversion of very low equivalent noise
  • Ease of installation and use
  • High energy efficiency
  • Optical connectors SC / APC and type F in RF

What technical specifications does the 234811 transmitter have?

  • RF parameters Input frequency
  • MHz 47-1100
  • Entry level max.
  • dBμV / dBmV 90/30
  • Manual gain adjustment dB 0 ... 14 (steps 2 dB)
  • CAG dB control 15
  • Flatness dB ± 1
  • CSO (CENELEC 42) note 1 dB 60
  • CTB (CENELEC 42) note 1 dB 60
  • Optical Laser type MQW-DFB refrigerated
  • Wavelength nm 1550 ± 20
  • Output power dBm 10
  • General RF Type F female connectors
  • Optical connector SC / APC
  • Supply voltage Vdc 12-24
  • Power consumption mA 360-220
  • Operating temperature ºC -5 ...... .45
More Information
EAN8424450177273
Hight0.082
Length0.267
Width0.253
System SATOptical Fiber
SERIE SATT.0X
Product BrandTeleves
