Broadband Line Amplifier (47-862 MHz) 39dB LTE

Name: Broadband Line Amplifier (47-862 MHz) 39dB LTE
Brand: Televes
SKU: TEL537302
Price: 110.52 EUR
Availability: InStock

SKU

TEL537302

Brands: Televes

€110.52 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

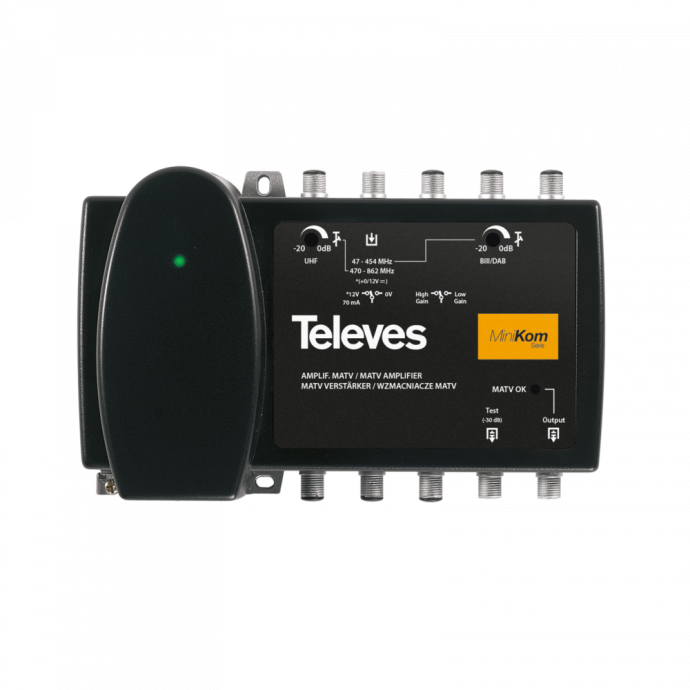

Multiband Line Central 1 in / 1 out 39dB MiniKom Televes 537302

Broadband line amplifier (1 input / 1 output) (47-862 MHz) for collective terrestrial TV distribution. The amplifier has "F" connectors. It allows powering of preamps such as mast amplifiers or antennas with BOSS technology.

The MiniKom control unit has a configurable gain via swtich (high / low): in high gain mode the equipment offers up to 39dB, if we select low gain it would be 29dB. In addition, the output is adjustable (0..20 dB) thanks to an attenuator integrated in the output.

Line amplifiers are commonly used to reamplify the signal in the main downcomer of a community when the header signal is not enough to obtain an optimal level in the first floors.

Details

MiniKom 1-in / 1-out Terrestrial Broadband Reamplifier

What are the main features of the Televes 537302 Amplifier?

Separate amplification that improves the output level without causing interference between bands
Gain attenuators on each input (0-20 dB), with PIN diode technology
Configurable gain via switch (high / low) and high output level
High armor chassis, made of Zamak
F connectors
Output signal indicator LED
Test output (-30 dB)
Switch for powering preamps or BOSS systems
Screwable on wall

What technical specifications does the MiniKom Televes 537302 amplifier have?

Band				47 ... 454	470 ... 862
Gain selec.	SW HIGH		dB	32	39
	SW LOW			22	29
Max. output level	EN50083	IMD3 (2 tones - 35 dB)	dBμV/dBmV	> 121/ 61	> 123 / 63
	DIN 45004B			> 114 / 54	> 116 / 56 > 114
	EN50083	IMD3 (2 tones - 60 dB)		111 / 51	113 / 53
		IMD2 (2 tones - 60 dB)		103 / 43	-
Noise figure			dB	< 6
Attenuator			dB	0 ... 20
Plug type				Type C "European plug"
Interstage equalizer			V~	207 ... 254
Max. consumption. AC			W / mA	7/50
Input line powering Selec.			V	0 / 12 (70 mA)
Operating temperature			ºC Fº	-5 ... +45 - 41 ... + 113
Protection index			IP	20

More Information

More Information
EAN	8424450144183
Hight	0.224
Length	0.075
Width	0.124
DTT System	DTT Amplifier
MANUFACTURER SERIES DTT	F-connector
Color	Black
Type	Broadband station
Entorno	Interior
# Inputs	1
Outputs	1
Gain	30
Max. output level Ganancia (dB/uV)	116
LTE compatible	No
Product Brand	Televes
