Chronos Hands-Free Model Monitor for Simplebus 2 by Comelit

SKU
COMCR7721
Brands: Comelit
€146.66 Tax included
Availability: In stock
24/48 Hours

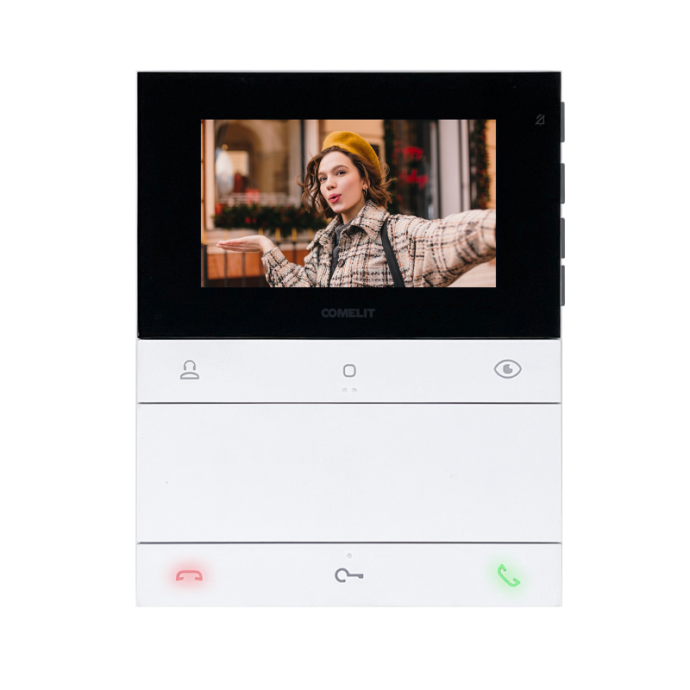

Comelit 4.3" Handsfree Monitor and 2-Wire System with NFC CR7721 Comelit Chornos Series

Discover the new range of Chronos monitors from Comelit, ideal for any environment: single or multi-family homes, mansions, offices, industrial buildings, bringing an elegant, robust and sustainable monitor to any space with high performance.

This monitor is a monitor version with 4.3" screen in color. It comes in white color, with metallic plate of 1.5mm thickness to fix it to the wall, which will be perfectly adjusted even if the wall has an uneven surface. It has wire connection terminals (it is compatible with 2-wire Simplebus system). In its front part it has 6 mechanical buttons with tactile and audible response (3 backlit with off-hook function, end of communication and door opener and 3 programmable). The 3 programmable buttons come from factory as: concierge call, generic actuator and auto power on). In addition, it is prepared with tactile guides for visually impaired carriers. Do not disturb function and LED signaling and push button for Menu management.

This monitor is characterized by being very robust and stable. This monitor goes a step further by incorporating NFC technology, which makes its configuration much easier and faster, as it takes 10 times less than it takes to make a traditional configuration. With NFC technology we will be able to adjust the configuration of the monitors without connecting them (from the box) once we have the first one ready. We only need a cell phone, the App MyComelit and adjust the desired parameters.

The advantage of the NFC system can be seen in installations with many users, especially in apartment complexes. With a touch on the smartphone and the MyComelit application, we can, once configured the first monitor, replicate it to the rest without lifting a finger. The configuration can be saved in a standard or customized way, with the advantages that this can bring: faster configuration, programming monitors without taking them out of the box, sending configurations by whatsApp, even configuring the monitors before receiving them.

This monitor is among the most efficient on the market in terms of energy consumption and sustainability. Its packaging is made of cardboard and paper.

The CR7721 works with bus shunt COM1214/2C or COM1412. (Not included, must be purchased separately).

-
+

Technical Specifications of the 4.3” Hands-Free Monitor and 2-Wire System with NFC CR7721 Chornos Series by Comelit



HANDS-FREE CHRONOS MONITOR 4.3. 2 WIRE
ELECTRICAL CHARACTERISTICS
Supply voltage 33VDC
Stand-by absorption (W) 0,03
Maximum absorption (W) 9,2
HARDWARE FEATURES
Button type Mechanic
Total buttons (n°) 6
Backlight color Green, Red, White
Terminals L L CFP CFP
Removable terminals Yes
Number of entries (n°) 1
SETTINGS
Speaker volume Yes
Ringtone volume Yes
Brightness of the screen Yes
Screen contrast Yes
Screen color Yes
NETWORK AND COMMUNICATION PROTOCOLS
Programming user functions via OSD menu Yes
Programming installer functions via OSD menu Yes
Function programming via NFC and MyComelit app Yes

ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS
IP protection index IP30
Operating temperature (°C) 5 ÷ 40
ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS
Operating humidity (RH max) (%) 25 ÷ 75
Environmental class I (B1)
CE Certifications RoHS II - 2011/65/UE (EN IEC 63000:2018), EMC 2014/30/UE (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)

GENERAL CHARACTERISTICS
Door opening Yes
Automatic door opening on call (Doctor) Yes
Silent mode (Privacy) Yes
Auto start Yes
Concierge switchboard call Yes
Intercom calls Yes
selective intercom call Yes
panic call Yes
Input for call from the floor bell Yes
Customizable doorbell Yes
Automatic answer (hands-free) Yes
Actuator control Yes
open door sign Yes
Audio signaling Yes
Video signs Yes
More Information
EAN 8023903453645
Hight 0.060
Length 0.220
Width 0.180
System Simplebus (2 threads)
SERIE Chronos
Color White
Color Portero/Videoportero Color
Type Monitor
Product Brand Comelit
