City Panel S1 DUOX PLUS Color 2 Buttons 2/W

SKU
FER40008
Brands: Fermax
€183.34 Tax included
Fermax
Availability: In stock
24/48 Hours

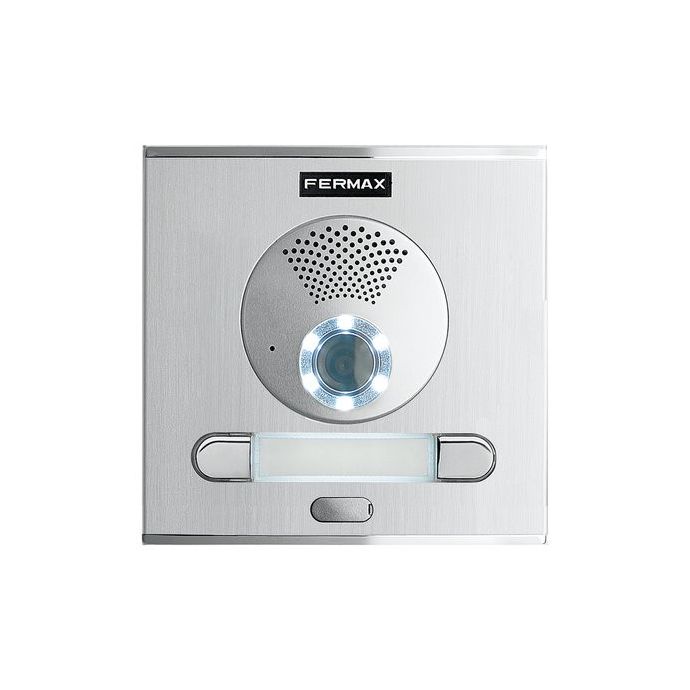

Video Panel CITY Series 1 DUOX PLUS Color with 2 buttons Fermax 40008

Cityline Series 1 DUOX PLUS (2-wire digital) entrance panel with wide-angle color camera and 2 call buttons. Ideal for 2 semi-detached single-family homes or a 2-home building.

DUOX PLUS digital technology for easy connection through 2 non-polarized wires, transmitting power, audio / video and data through the same cable.

Made with high quality materials and weather resistance, designed to install at the entrances to the building. Anodized aluminum front, interior protected by a stainless steel grille and chrome-plated zamak on pushbuttons and heads.

Cityline panels do not include the flush or surface box. This must be requested separately.

Color Cityline Series 1 DUOX PLUS Video Panel (2-wire digital) with 2 Buttons

What technical specifications does the CITY Fermax 40008 Panel have?

  • LED lighting consumption: 3.5 mA per card holder
  • Video:
    • Sensor: 1/3 "color CMOS
    • Effective pixels>, 340K. (camera captures 720x480)
    • Minimum external illumination: 0 lux. As it has LEDs, no additional lighting is required
    • S / N>, 45dB
    • Frame rate 25 fps
    • Resolution>, 368x288 pixels
    • Video Codec: H264 Highline Profil
    • Auto iris
    • Auto BLC
    • Viewing angle 100º horizontal, 80º vertical
    • Fisheye correction
    • Color night vision through white LEDs
    • Pan &, Tilt digital zoom
  • Series Plate 1:
    • Plate dimensions: 130x128 mm (width-height)
    • Flush box dimensions: 115x114x45 mm (width-height-depth)
    • Surface box dimensions: 130x128x33 mm (width-height-depth)
  • Power supply: 18-24 Vdc
  • Consumption:
    • standby: 240 mA
    • active audio: 560 mA
  • IPK-437
  • House-street direction audio power: 2W
  • Audio power street-house direction: 0.15W
  • Adjustable volume in both directions
  • Operating temperature: -25 to 70 ºC
  • Weight: 0.516547 kg
More Information
EAN8424299400082
Hight0.150
Length0.070
Width0.140
ACCESOS - SISTEMADUOX PLUS
ACCESOS - SERIECITYLINE
ColorGray
TypeEntrance panel
Product BrandFermax
