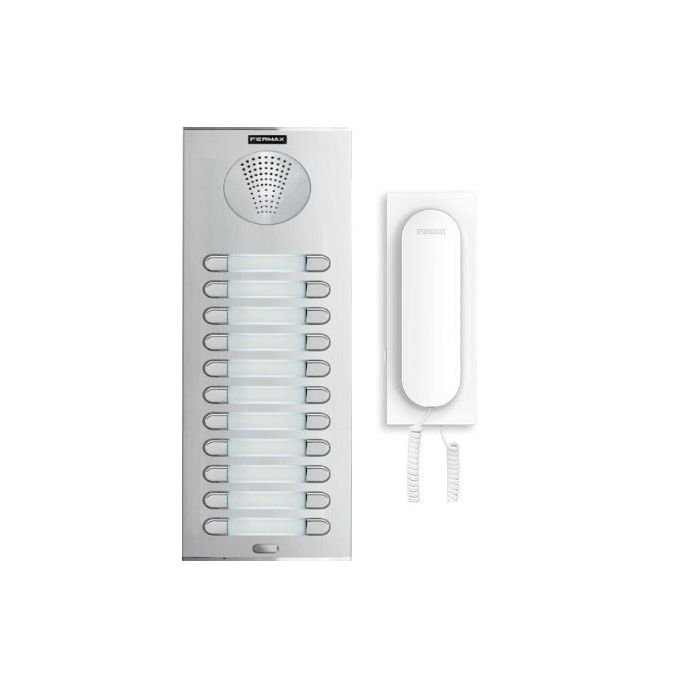

The door entry kit Fermax 4876 allows communication of a building of 22 homes with the outside to allow access.
This kit is installed with 4 wires + N (1 wire per housing).
The 4876 Fermax kit includes all the material needed for a complete installation and immediate operation: street plate and recess box, DIN 12Vac / 1.5A feeder (ref.4800) and 22 LOFT telephones.
The 4876 doorman kit includes everything needed to install electronic doorkeepers in a building with 22 homes.
What does the 4876 kit include?
4843. CITYLINE 4 + N 8AP211 board and recessed box
Street plate S8: 130 (H) x389 (V) mm.
Flush-mounted housing S8: 115 (H) x375 (V) x45 (P) mm.
3393. Telephone LOFT BASIC 4 + N (22 units).
4802. 12Vac / 1A power supply. DIN4.
What technical features does the 4843 card have?
Consumption Leds illumination: 3.5 mA per card holder.
Series 8 plate.
Measures plate: 130x389 mm (width-high).
Dimensions in-box: 115x375x45 mm (width-high-deep).
Measures box surface: 130x389x33 mm (width-high-deep).
Power System:
Audio: 12 Vac
Video: 18 Vdc
Consumption:
At rest: 65 mA.
Call: 600 mA.
Active audio: 100 mA.
Audio + video: 180 mA (camera consumption: 80mA)
IPK-437
Power audio sense house-street: 2W
Sound power street-dwelling sense: 0.15W
Adjustable volume in both directions
Operating temperature: -10 to 60 ° C
What technical characteristics does the 3393 doorphone have?
The terminal incorporates a magnet in the area of the headset that allows the arm to hang well and fixed to the base.
This prevents the arm from falling during its hanging, damaging the wall and also prevents it from causing malfunctions in the installation due to bad hanging.
Screwed on surface.
Power System:
Audio: 12 Vac
Video: 18 Vdc
Door release button and concierge call.
What technical features does the 4802 power supply have?
Dimensions DIN 4: 70x 90x60 mm
Input Voltage: 230 VAC
Output voltage: 12 Vac
Output Current: 1A
Input protection: PTC and 2.3A fuse
Output protection: Electronic limiting for overload and short circuit
