Coaxial Cable Cu/Cu Class A+ Euroclass Dca (100m)

Name: Coaxial Cable Cu/Cu Class A+ Euroclass Dca (100m)
Brand: Televes
SKU: TEL414002B
Price: 112.52 EUR
Availability: InStock

SKU

TEL414002B

Brands: Televes

€112.52 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

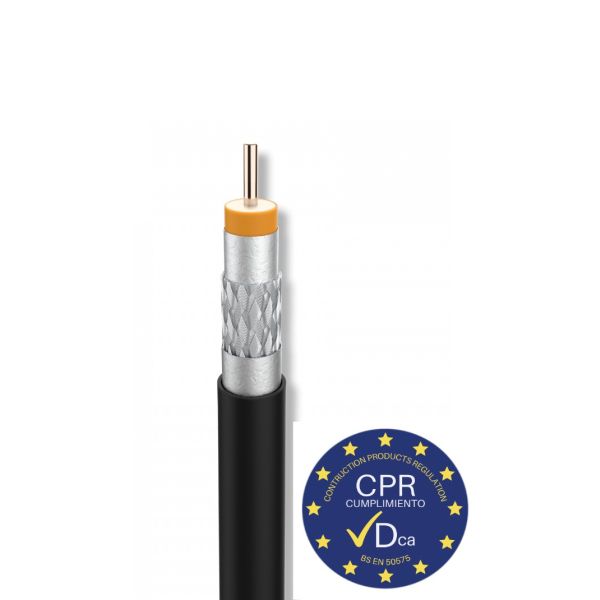

Coaxial Cable Cu/Cu Class A+ Euroclass Dca LSFH Televes 414002 (100m)

100 meter reel of SK2003plus coaxial cable manufactured with Copper (Cu) conductor and mesh and UV resistant LSFH black outer sheath.

TSH Class A+ triple shielded coaxial cable recommended for special installations with high levels of electromagnetic noise. Its Euroclass Dca classification offers high fire safety together with the halogen-free cover.

Suitable cable for outdoor installation, with low electrical resistance and excellent response in high and low frequencies.

Details

SK2003plus Cu/Cu Triple Shield Class A+ Euroclass Dca Coaxial Cable with UV Resistant LSFH Sheath

What are the main characteristics of the Televes 414002 Coaxial Cable?

Copper conductors
Class A+ shielded
Dca Euroclass
External UV-resistant LSFH sheath, black colour
75 Ohm characteristic impedance
Available in reels of different lengths

What technical specifications does the Televes 414002 Coaxial Cable have?

Attenuations (dB/m)
Type		SK2003plus
Standard		EN 50117-2-5
EuroClass		Dca
Class		A+
Inner conductor	Ø mm	1,02
	Material	CU
	Res. Ohm/Km	<22
Dielectric	Ø mm	4,6
Dielectric	Material	PEE
Overlapped foil		Aluminium + Polyester
Braid	Material	CuSn (98%Cu)
	Dimensions (Ncx Nsx Ø)	24 x 7 x 0.10
	Res. Ohm/Km	<11
	Coverage %	82
2-nd foil		Yes
Petrol-Jelly		No
Outer sheath	Ø mm	6,7
Outer sheath	Material	LSHF, UV resistant
Minimum bending radius	mm	33,5
Screening attenuation @ 1GHz	dB	>95
Capacitance	pF/m	54
Impedance	Ohm	75
Transfer impedance (5-30MHz)	mOhm/m	≤2,5
Velocity ratio	%	84
Frequency (MHz)
	5	0,02
	47	0,05
	90	0,06
	200	0,09
	500	0,14
	800	0,18
	1000	0,21
	1350	0,24
	1750	0,28
	2050	0,3
	2300	0,32

More Information

More Information
EAN	8424450152324
Hight	0.000
Length	0.000
Width	0.000
System DTT	RG6
Serie	100m
Entorno	Exterior
Color	Black
Cobertura Exterior Cables	PE
Conductor Interno Cables	Copper (Cu)
Material Malla Coaxial	Tinned Copper (CuSn)
Product Brand	Televes
