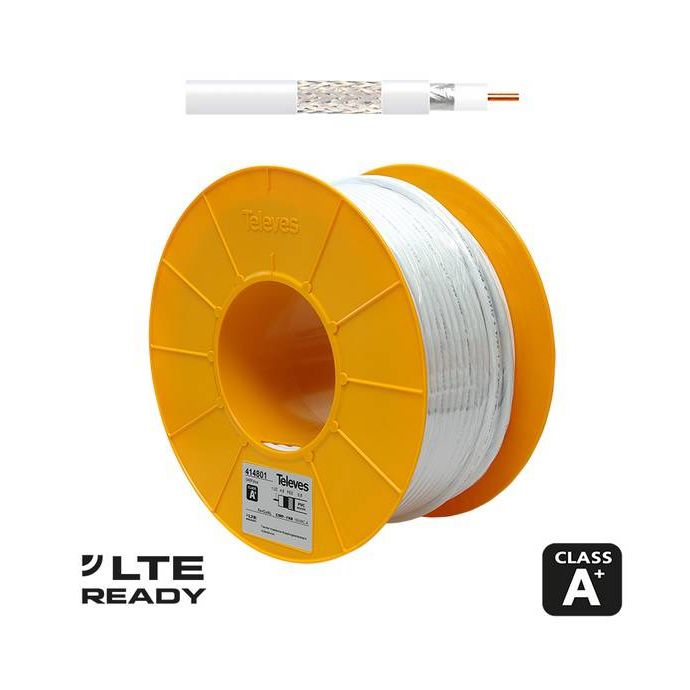

Coaxial cable of white color 414801 of Televes is usable exclusively for interior, because its outer cover is PVC.
This coaxial cable has an internal conductor made of 1 mm thick copper-plated steel, a dielectric of 4.7 mm, a 100% aluminum mesh cover and an outer PVC cover.
This coaxial cable is supplied in a 100 meter coil
The coaxial cable 414801 of RG6 is supplied in 100-meter coil in white color is a coaxial cable for indoor use.
What technical characteristics does the coaxial cable 414801 have?
Steel inner conductor of 1 mm diameter.
Polyethylene dielectric 4.7 mm in diameter.
100% aluminum cladding.
6.8 mm diameter PVC exterior cladding.
Impedance of 75 Ohms.
What attenuation does the coaxial cable 414801 have?
This coaxial cable has the following attenuation at 100 meters:
Attenuation 20ºC dB - 100m
Frequency
dB/100mt +/- 3%
50
4,8
200
9,5
500
15
800
19,2
1000
21,5
1350
25
1750
28,65
2050
32
2300
33
What is the RG6 coaxial cable used for?
A RG6 coaxial cable, such as coaxial cable 414801, is used for the transmission of television signal, by the connectorization of connectors F, for connection to receivers, or of connectors CEI for connection to television.
