Coaxial cable in black color Cu, Cu CLASS A in 100m coil
Availability: In stock
24/48 Hours

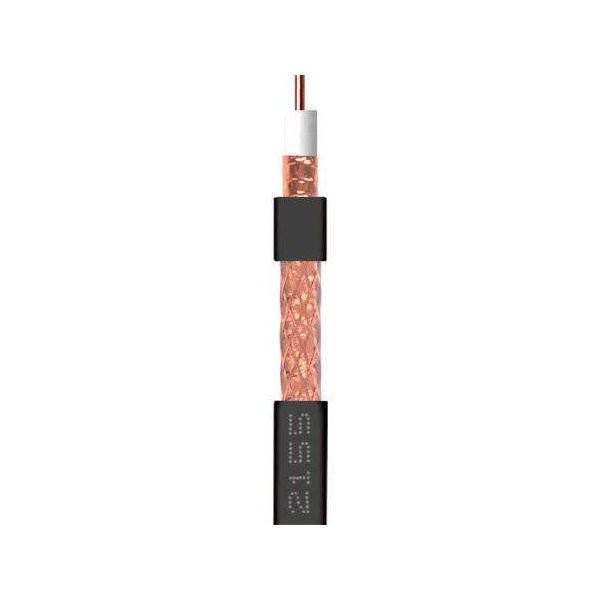

Coil of 100 meters of coaxial cable T-100 for exterior in black color
Televes cable 215501 is copper with black PEE cover, perfect for our outdoor installation.
This coaxial cable has an inner conductor made of copper 1.13 mm thick, a dielectric of 4.8 mm, a copper mesh cover and a black PEE outer cover.
The image may not correspond with the item.
Televes 215501 cable offers fabulous features at a very affordable price.
What technical features does the 215501 cable have?
| Inner Conductor - Mesh Composition |
Copper-Copper |
| Model Televés |
T-100 |
| Inner conductor |
Ø |
mm |
1.13 |
| Material |
Copper |
| Resistance |
ohm/Km |
20 |
| Dielectric |
Ø |
mm |
4.8 |
| Material |
Expanded polyethylene |
| Screen Shield |
Material |
Copper + Polyester |
| Net |
Resistance |
ohm/Km |
<20 |
| Material |
Copper |
| Antimigratory film |
yes |
| Sealing gel |
no |
| External cover |
Ø |
mm |
6.6 |
| Color |
Black |
| Material |
PEE |
| Minimum bend radius |
mm |
33 |
| Shielding |
dB |
>75 |
| Capacity |
pF/m |
55 |
| Type of USE |
Exterior |
| Packaging |
meters |
m |
100 |
| Attenuations |
| Frequency |
200 |
MHz |
0.08 |
| 500 |
0.12 |
| 800 |
0.15 |
| 1000 |
0.18 |
| 1350 |
0.21 |
| 1750 |
0.24 |
| 2050 |
0.27 |
| 2150 |
0.27 |
| 2300 |
0.28 |
More Information | EAN | 8424450103500 |
|---|
| Hight | 0.000 |
|---|
| Length | 0.000 |
|---|
| Width | 0.000 |
|---|
| System ICT | RG6 |
|---|
| Serie | 100m |
|---|
| Entorno | Exterior |
|---|
| Color | Black |
|---|
| Cobertura Exterior Cables | PE |
|---|
| Conductor Interno Cables | Copper (Cu) |
|---|
| Material Malla Coaxial | Copper (Cu) |
|---|
| Product Brand | Televes |
|---|
| File | Label | Size | Download |
 | Ficha técnica del cable coaxial T100 215501 de Televes | 150.3 KB | Download |
