Coaxial Cable MK 400 LSZH CPR Coil 100m White

Name: Coaxial Cable MK 400 LSZH CPR Coil 100m White
Brand: Tecatel
SKU: TECMK400BLB
Price: 55.9 EUR
Availability: InStock

SKU

TECMK400BLB

Brands: Tecatel

€55.90 Tax included

Availability: In stock

Delivery: 24/48 Hours

Be the first to review this product

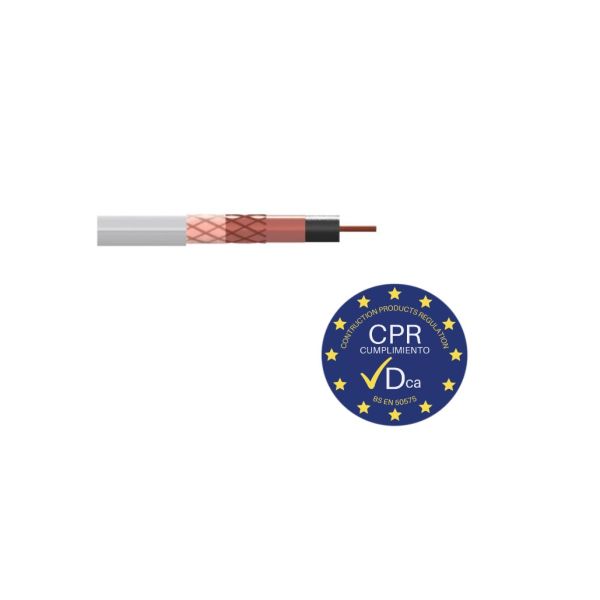

Interior White Coaxial Cable CAB-MK400BL Coil of 100 meters

Internal coaxial cable in coil of 100 meters of 6.8mm thickness. With LSZH cover in white. The cable has an internal conductor made of 1.05mm thick copper.

The cable has a bend radius of 40mm and a return loss of 25dB.

Coaxial cable is ideal for television distribution installations, with a very competitive price and high quality that characterizes the brand.

Details

Technical Specifications of the Indoor White Coaxial Cable CAB-MK400BL 100 meter coil

Conducto central Inner conductor	Material / Material	Cu
Conducto central Inner conductor	Diámetro (mm) / Diameter (mm)	1,05 ± 0,02
Dieléctrico Foam dielectric	Material / Material	PE
Dieléctrico Foam dielectric	Diámetro (mm) / Diameter (mm)	4,8 ± 0,1
Lámina Foil	Material / Material	Al / Pet / Cu + PET
Lámina Foil	Cobertura / Coverage	100 %
Malla Braid	Material / Material	16 x 6 x 0,12 mm CCA
Malla Braid	Cobertura / Coverage	80 %
Cubierta Jacket	Material / Material	LSZH
Cubierta Jacket	Diámetro (mm) / Diameter (mm)	6,8 ± 0,1
Impedancia Impedance		75 ± 3 Ω
Atenuación típica (dB/100m) Attenuation Typ. (dB/100m)	50 Mhz	4,90
	470 Mhz	14,70
	800 Mhz	17,90
	1000 Mhz	21,80
	1750 Mhz	24,10
	2150 Mhz	27,90
Radio de curvatura (mm) Bend radius (mm)		40
Eficiencia apantallamiento (dB) Shielding efficiency (dB)	5 – 1000 MHz	> 80
Eficiencia apantallamiento (dB) Shielding efficiency (dB)	1000 – 2150 MHz	> 70
Pérdidas retorno (dB) Return loss (dB)	5 – 862 MHz	> 25
Pérdidas retorno (dB) Return loss (dB)	862 – 2150 MHz	> 22
CPR		Dca-s2, a2, d2
Tipo de uso		Interior

More Information

More Information
Hight	0.000
Length	0.000
Width	0.000
System ICT	RG6
Serie	100m
Entorno	Interior
Color	White
Cobertura Exterior Cables	LSFH
Conductor Interno Cables	Copper (Cu)
Material Malla Coaxial	Copper Clad Aluminum (CCA)
Product Brand	Tecatel
