Coaxial Cable T100plus Class A Cu/Cu 214122 Bovine 250m Televés

SKU
TEL214122C
Brands: Televes
€255.37 Tax included
Free shipping
(Iberian Peninsula)
Availability: On request
1 to 7 days

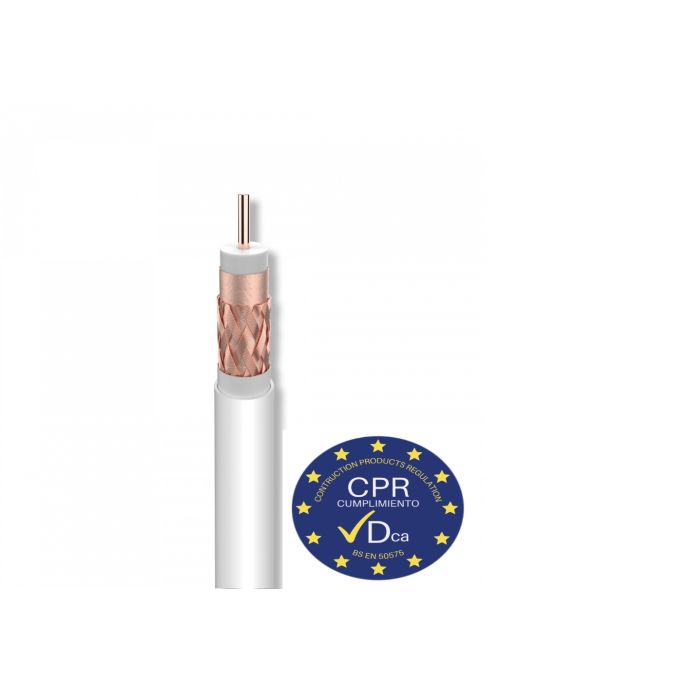

Bovine Coaxial Cable 250m Class A Cu/Cu

Coaxial cable with excellent braiding coverage (75%). Both the live and the mesh are made of copper. The shielding is double and incorporates an antimigration sheet, to avoid the migration of the cover additives and external humidity.

This cable is screened in class A. Euroclass Dca-s2, d2, a1.

They comply with the EN 50117 standard.

-
+

Technical Specifications Coaxial Cable Class A Cu / Cu bovine 250 meters 214122



Type   T-100plus
Standard   EN 50117-2-4
Euroclass   Dca
Euroclass: Emission of opaque fumes   s2
Euroclass: Falling Flammable Particles   d2
Euroclass: Acidity   a1
Class   A
Central Conductor Diameter mm 1,13
Central Conductor Material   copper (Cu)
Central conductor resistance Ω/km < 20
Dielectric Diameter mm 4,8
Dielectric Material   Expanded polyethylene (PEE)
Dielectric Color   White RAL 9003
Inner foil   copper+Polyester
Mesh Material   copper
Mesh dimensions: number of yarns groups (Nc)   16
Mesh Dimensions: number of threads per group (Ns)   8
Mesh dimensions: wire diameter (Ø) mm 0,11
Mesh resistance Ω/km < 12
Mesh coverage % 73
2nd shielding sheet   No
2nd shielding sheet glued to the dielectric   No
Petro-Gel   No
Anti-migration sheet   Yes
Outer cover diameter mm 6,6
Material Outer cover   LSFH
Thickness Outer Cover mm 0,3
Minimum bend radius mm 33
Transfer impedance (5-30MHz) mΩ/m < 5
1GHz shielding dB > 85
Spark Test Vac 3000
Capacity pF/m 55
Impedance Ω 75
Propagation velocity min. % 82
Operating temperature °C -25 ... 70
Frequencies
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation(typ.) dB/m
0,01 0,03 0,04 0,05 0,08 0,13 0,15 0,16 0,16 0,17 0,19 0,2 0,22 0,25 0,26 0,27 0,28 0,3 0,31 0,33
More Information
EAN 8424450212431
Hight 0.000
Length 0.000
Width 0.000
System DTT RG6
Serie 250m
Entorno Interior
Color White
Cobertura Exterior Cables LSFH
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Copper (Cu)
Product Brand Televes
