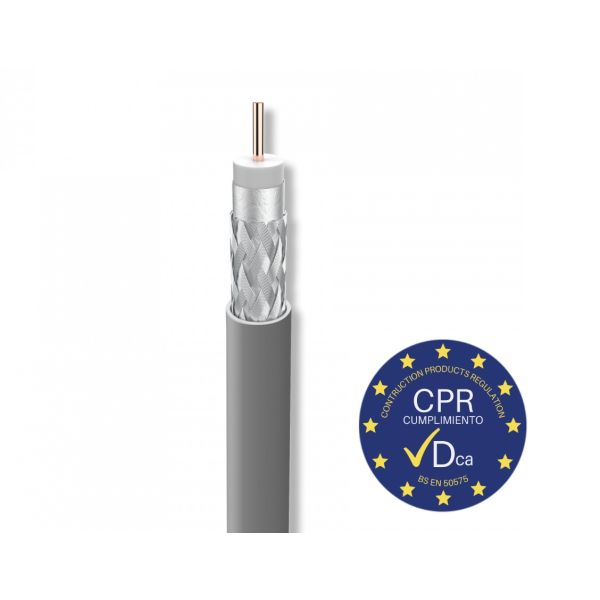

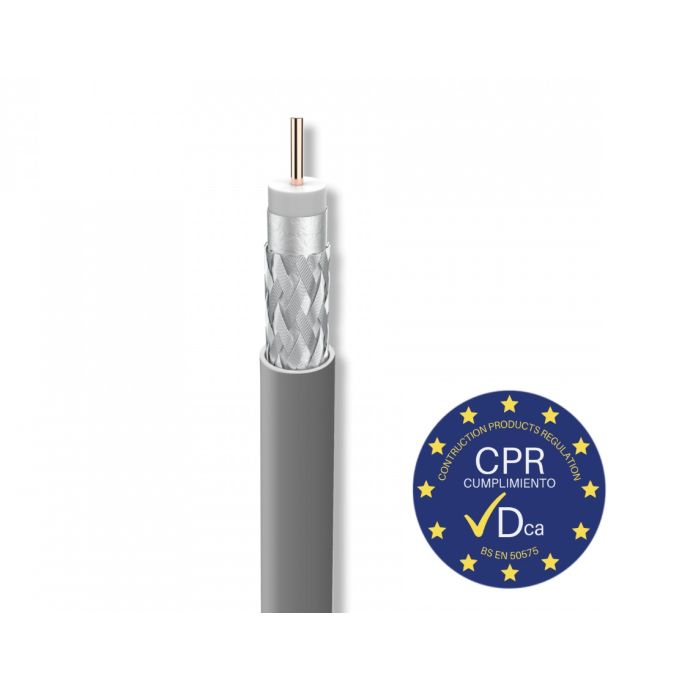

Dca Coaxial cable with live copper and aluminum mesh with gray PVC cover in 250m coil

SKU
TEL212811C
Brands: Televes
€128.26 Tax included
Availability: On request
1 to 7 days

Coaxial cable Cu/Al Euroclass Dca in gray color in 250m coil

The Televes 212811 coaxial cable is an RG-6 coaxial cable with a live cable made of copper as the central conductor and an aluminum mesh (Cu/Al), with excellent braid coverage (79%).

A cable with double shielding and LSFH jacket. The double shielding ensures the minimum interference by having a shield in each pair of twisted cable and in the total of the cable assembly. The LSFH cover is halogen free, flame resistant, complying with IEC60754 standards. In addition to an impedance of 75 Ohms.

This cable is Euroclass Dca, this parameter indicates the level of reaction to fire of the material. These cables are used for residential ICT installations.

Supplied in a 250 meter wooden coil.

-
+

Technical Specifications of the Cu/Al Euroclass Dca coaxial cable in gray color in a 250m coil

Coaxial cable with live made of copper and aluminum mesh (Cu / Al).

What technical characteristics does the 212811 coaxial cable have?

  • Internal conductor made of copper and aluminum mesh
  • Class A shielding
  • Euroclass Dca
  • Exterior coverage of LSFH, in gray
  • Characteristic impedance of 75 ohm
  • 250m wood coil





Model   CXT
Type of cable   RG-6
Standar   EN 50117-2-4
Euroclass   Dca
Euroclass:Opaque smoke emission   s2
Euroclass:Falling inflamed particles   d2
Euroclass: sharpness   a1
Class   A
Center conductor diameter mm 1
Center Conductor Material    Copper (Cu)
Resistance Center conductor Ω/km < 23
Dielectric Dieameter mm 4,5
Dielectric Material   Expanded Polyethylene (PEE)
Dielctric Color   White RAL 9003
Internal Sheet   Aluminum + Polyester
Mesh Material    Aluminum
Mesh dimensions: number of thread groups (Nc)   16
Mesh dimensions: number of wires per group (Ns)   8
Mesh dimensions: thread diameter (Ø) mm 0,12
Mesh Endurance Ω/km < 31
Mesh Coverage % 79
2nd armor plate   No
2nd shielding sheet glued to the dielectric   No
Petro-Gel   No
Anti-immigration sheet   No
Diameter Outer cover mm 6,5
Outer sheath material   LSFH
Minimum bending radius mm 32,5
Transfer impedance(5-30MHz) mΩ/m < 5
Shield at 1GHz dB > 85
Spark Test Vac 3000
Capacity pF/m 54
Impedance Ω 75
Min. propagation speed % 82
Operating temperature °C -25 ... 70
Frecuencies
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation(typ.) dB/m
0,01 0,05 0,05 0,06 0,09 0,14 0,17 0,19 0,19 0,2 0,21 0,23 0,25 0,29 0,32 0,34 0,35 0,35 0,35 0,39



More Information
EAN 8424450169834
Hight 0.000
Length 0.000
Width 0.000
System DTT RG6
Serie 250m
Entorno Interior
Color Gray
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Aluminum (Al)
Product Brand Televes
