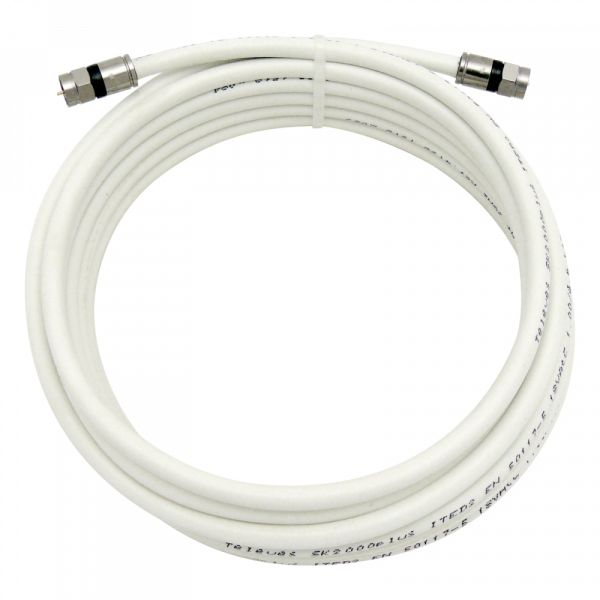

Coaxial Extension F - F Male Compression 3m

SKU
TEL385101
Brands: Televes
€11.59 Tax included
Availability: In stock
24/48 Hours

Preconnectorized Coaxial Extension with Televes Male F-F Connection

Coaxial extension cable with pre-connected male F connector. We will connect this cable between the socket and the TV device. This cable has great quality, it has triple shielding and class A++.

It has a length of 3 meters, Euroclass Eca. Its central conductor has a section of 1.02mm and is made of copper. It is covered by a tinned copper mesh with a section of 0.1mm. This high quality cable has a second shielding sheet and a 6.7mm diameter PVC outer jacket. The connectors at each end are compression.

-
+

Technical Specifications of the Televes Preconnectorized Coaxial Extension Cable with F-F Male Connection

Standard   EN 50117-2-4
Euroclass   Eca
Class   A++
Inner conductor Diameter mm 1.02
Inner conductor Material   Copper (Cu)
Inner conductor Resistance Ω/km < 22
Dielectric Diameter mm 4.6
Dielectric Material   Foam polyethylene (PEE)
Dielectric Color   White RAL 9003
Overlapped foil   Aluminium + Polyester + Aluminium
Braid Material   Tinned copper (CuSn)
Braid dimensions: No. of carriers (Nc)   24
Braid Dimensions: No. of strands per carrier (Ns)   7
Braid Dimensions: strand diameter (Ø) mm 0.1
Braid Resistance Ω/km < 10.5
Braid Coverage % 82
2nd foil   Yes
2nd foil glued to the dielectric   No
Petrol-Jelly   No
Anti-migrating film   No
Outer sheath Diameter mm 6.7
Outer sheath Material   PVC
Outer sheath Thickness mm 0.3
Minimum bending radius mm 33.5
Transfer impedance (5-30MHz) mΩ/m < 0.9
1GHz shielding dB > 105
Connector type 1   "F" Compression
Connector type 2   "F" Compression
Spark Test Vac 3000
Capacitance pF/m 54
Impedance Ω 75
Velocity ratio % 84
Operating temperature °C -30 ... 70
Frequencies
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation (typ.) dB/m
0.02 0.05 0.05 0.06 0.09 0.14 0.17 0.19 0.19 0.19 0.21 0.22 0.25 0.28 0.3 0.31 0.31 0.32 0.33 0.36
More Information
EAN 4031136022075
Hight 0.000
Length 0.000
Width 0.000
System DTT RG6
Serie 3m
Entorno Interior
Color White
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Tinned Copper (CuSn)
Product Brand Televes
