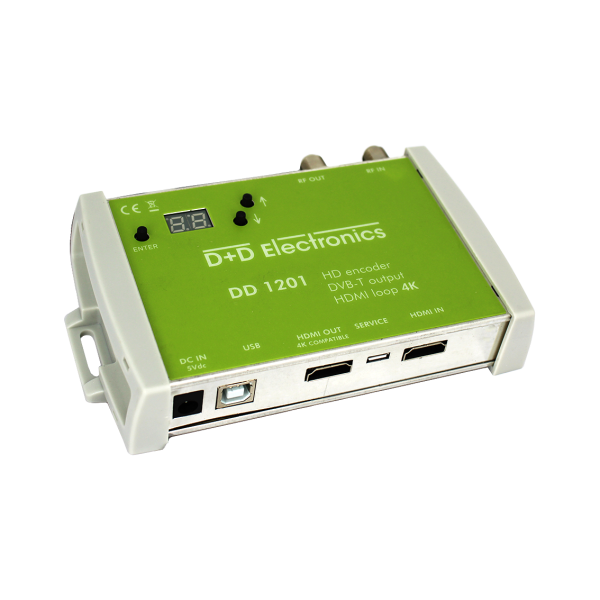

COFDM HD Digital Modulator With HDMI Loop from D+D Electronics

SKU
DD122015
€373.89 Tax included
Free shipping
(Iberian Peninsula)
D+D Electronics
Availability: On request
1 to 7 days

HD HDMI COFDM Digital Modulator with HDMI IN/OUT LOOP

With this modulator you can carry the signal from your receiver with the HDMI output to see it in the rest of the house. The device modulates HDMI audio and video signals to DVB-T signals.

You will be able to carry the image signal from the decoder or DTT to the other televisions through the coaxial cable. They are used inside the house.

It has a resolution up to 1080p. In addition, it incorporates HDMI IN/OUT LOOP, i.e., it has HDMI input and output. Excellent quality with a MER>33 dB.

It is very easy to use thanks to its intuitive and fast menu . Parameter settings are easily adjusted using the channel, attenuation and program identification buttons.

Technical Specifications of the COFDM HD Digital Modulator with HDMI LOOP from D+D Electroncics

REFERENCE   DD 1201
IN   HDMI 2.0, fully compliant HDCP 2.2 backwards compliant HDMI 1.4
OUT   HDMI loop
VIDEO
Supported input video resolution   480i@60Hz, 480p@60Hz, 576i@50Hz, 720p@50/60Hz, 1080p@50/60Hz,
1080i@50/60Hz, 4Kx2K@24/30/50Hz
Data rate   6Gbps per channel
Video encoding   H.264
Video rate   15Mbps
AUDIO
Audio encoding   MPEG1-L2, AAC-LC
Audio rate Kbps 128, 192, 256, 320, 384
MODULATION
Output video resolution   1080p maximum
DVB processing   NIT, PID
DVB configuration   NID, ONID, Network name, TSID, PID, Program name, PMT PID, Video PID, Audio
PID"
Output frequency MHz 170-230 & 470-862
Channel output   5-12 & 21-69
Output level dBuV >80
Attenuation dB 0..15
MER dB >33
Bandwidth MHz 6,7,8
Constellation   QPSK, 16QAM, 64QAM
Mode   2K, 8K
FEC   1/2, 2/3, 3/4, 5/6, 7/8
Guard interval   1/4, 1/8, 1/16, 1/32
LCN   EACEM, ITC, NORDIG
RF loop dB -2
GENERAL
Power Vdc 5
Power consumption W <5
Dimensions mm 170x130x35
Weight Kg 0.6







More Information
EAN8436548997168
Hight0.000
Length0.000
Width0.000
DTT SystemDigital Modulator
SERIES DTTHDMI
# Inputs1
Outputs1
Max. output level Ganancia (dB/uV)80
LTE compatibleNo
Current bypassTerrestrial
Product BrandD+D Electronics
