Color A/V Unit VIP System Ikall HD Series On request
Delivery: 1 to 7 days

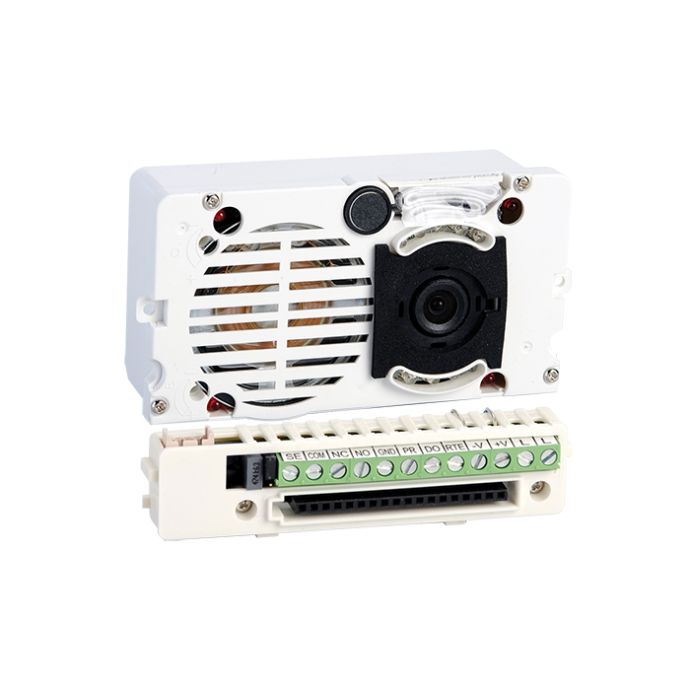

Color Audio and Video Module for VIP Systems.
This audio and video unit is compatible with IKALL, IKALL Metal, Switch, Vandalcom and Roma Series boards. It has a built-in HD camera with a resolution of 1280x720 pixels. This camera has an opening angle of 110º(H) and 80º(V), is in color and includes LED lighting.dedicated power supply (reference 1595) or by POE. Dimensions : 102x55x38mm.
Technical Specifications of the Color Audio and Video Module for VIP Systems.
GENERAL DATA
Type
Audio and video unit
Height (mm)
55
Width (mm)
102
Depth (mm)
43
Product color
White
Product weight (g)
170
Type of finishing materials
ABS
COMPATIBLE SYSTEMS
Vip system
Yes
AUDIO FEATURES
Microphone
9.7 (ø), omnidirectional
Loudspeaker
50mm (Ø), 8 Ohm, 0.2W
Technologies implemented
Echo canceling
CAMERA FEATURES
Camera
Colours
Sensor type
1/2.9" CMOS
Angle of view (H x V - °)
110 x 80
Video resolution (H x V - pixel)
1280x720 (HD 720p)
Video compression
H.264
ELECTRICAL CHARACTERISTICS
Type of power supply
PoE, External power supply
Supply voltage
30÷57VDC
PoE power supply
36÷57VDC, standard PoE, Comelit PoE (56VDC)
Absorption in stand-by (W)
3
Maximum absorption (W)
6
HARDWARE FEATURES
Clamps
TX- TX+RX- RX+V- V+RTE GND SE COM NC NO
Removable terminals
Yes
Number of inputs (n°)
2
Number of outputs (n°)
2
Type of outputs
Relay C-NO, 2.5A max@12VDC/24VAC (15A peak), SE: unlock pulse of 4A, holding current of 200mA for 12VAC / DC locks (maximum impedance 18 Ohm)
SETTINGS
Loudspeaker volume
Yes
Microphone volume
Yes
NETWORK AND COMMUNICATION PROTOCOLS
Type of LAN network
Ethernet 10 Mbit/s
More Information EAN 8023903317718 Hight 0.000 Length 0.000 Width 0.000 ACCESOS - SISTEMA VIP (IP System) ACCESOS - SERIE IKALL Color White Color Portero/Videoportero Color Type Accessories Product Brand Comelit
File Label Size Download Ficha Técnica Unidad A/V en Color Sistema VIP Serie Ikall HD 947.9 KB Download
