Comelit Ultra Black 3-Module Recessed Frame

SKU
COMUT9163B
Brands: Comelit
€72.32 Tax included
Comelit
Availability: On request
1 to 7 days

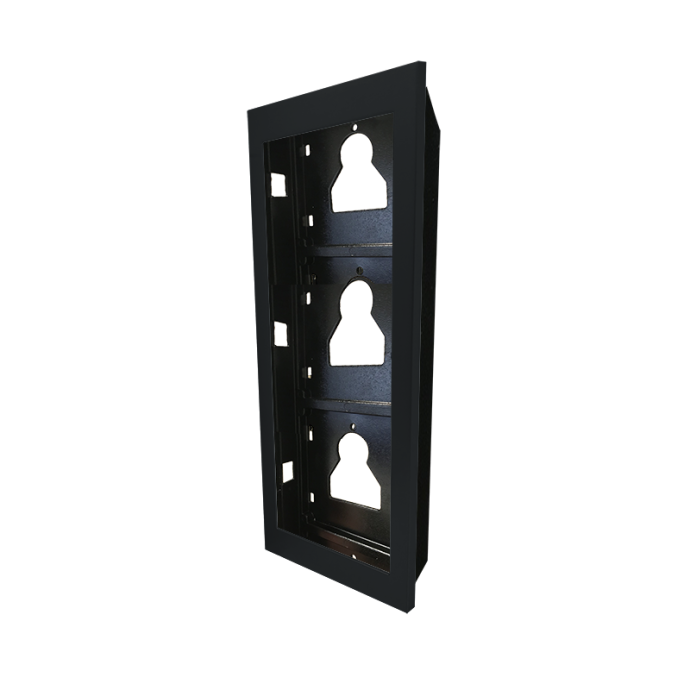

Rack for 3 Comelit Ultra Black UT9163B Board Modules

The UT9163B is a modular type frame for 3 modules in black RAL9005. This frame is suitable for mounting up to 3 modules of Comelit Ultra series plates.

It is flush mounted on the wall, providing an aesthetic and safe solution for the installation of access control or surveillance equipment.

The frame is metallic with a frame finished in aluminum, treated with cataphoresis that increases resistance to chemical and environmental corrosion.

The frame has dimensionsof 317.5x125.5x35mm.

Technical Specifications of the Frame for 3 Comelit Ultra Black UT9163B Board Modules

BUILT-IN FRAME 3 MODULES ULTRA BLACK
COMPATIBLE SYSTEMS
Audio/video Simplebus 2 with power supply art. 4888C Yes
Audio/video Simplebus 2 with power supply art. 1210/1210A Yes
Simplebus 2 audio with power supply art. 1210/1210A Yes
Audio Simplebus 1 Yes
VIP Yes
MAIN FEATURES
Height (mm) 317,5
Width (mm) 125,5
Depth (mm) 35
Product weight (g) 950
GENERAL DATA
Lining material type Metallic, Die-cast aluminum
Product color Black RAL9005
ASSEMBLY/INSTALLATION
Flush mounting Yes
More Information
EAN8023903421361
Hight0.080
Length0.350
Width0.170
ACCESOS - SISTEMAFrames
ACCESOS - SERIEAccessories
ColorBlack
TypeAccessories
Product BrandComelit
Write Your Own Review
You're reviewing:Comelit Ultra Black 3-Module Recessed Frame
Your Rating
File Label Size Download
pdf Ficha Bastidor de Empotrar 3 Módulos Ultra Negro de Comelit 1016.4 KB Download
