Comelit Ultra Simplebus 2 Audio Module

SKU
COMUT2010
Brands: Comelit
€147.84 Tax included
Comelit
Availability: In stock
24/48 Hours

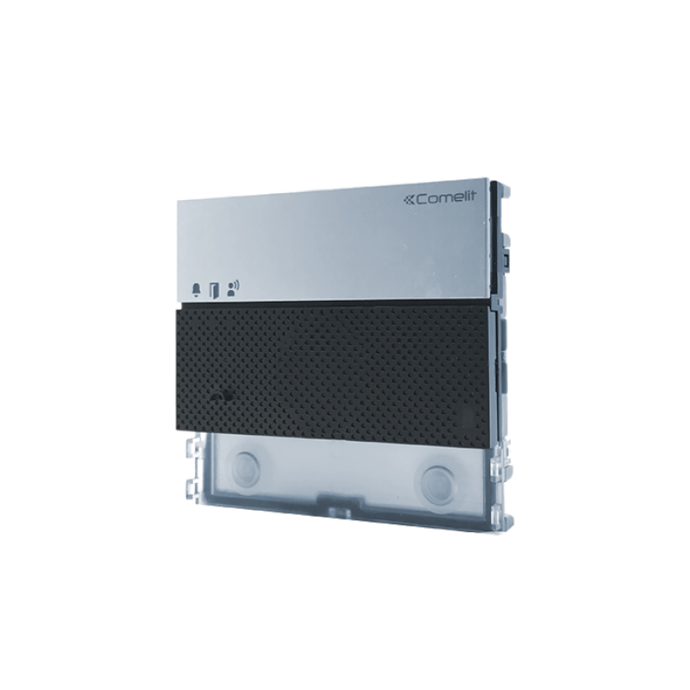

Comelit Ultra Simplebus 2 Audio Module

This audio module is an essential component in intercom systems, designed to be integrated into the Ultra series door stations to facilitate clear and efficient communication between visitors and residents. It features advanced technology and ease of installation, making it an ideal choice for enhancing security and access management in a variety of facilities.

Designed to work with the Simplebus2 system, integrating with devices of the same line. Equipped with an omnidirectional digital microphone and a dual speaker system, providing clear sound quality without interference.

It facilitates the configuration of the call buttons, adapting to the specific needs of each installation. Includes an automatic sensor that controls the backlighting of the nameplates, optimizing energy consumption and ensuring adequate visibility in low light conditions.

Technical Specifications of the Comelit Audi Ultra Simplebus 2 Module

GENERAL INFORMATION
Type Modular
Height (mm) 90
Width (mm) 100
Depth (mm) 35
Product color Aluminum, Black RAL9005, Transparent
Product weight (g) 275
Type of cladding material Polycarbonate, Aluminum alloy
Flush mount And
Wall mount And
COMPATIBLE SYSTEMS
Simplebus 2 audio/video with power supply, art. 1210/1210A Yeah
Simplebus 2 audio/video kit, power supply item 1209 Yeah
Audio Simplebus 2 with power supply art. 1210/1210A Yeah
AUDIO FEATURES
Microphone MEMS digital audio sensor, omnidirectional
Speaker 28mm (Ø), 8 Ohm, 1W (2)
Technologies implemented Full-Duplex
ELECTRICAL CHARACTERISTICS
Power supply type Power supply from the video intercom bus
Supply voltage 33VDC
Stand-by absorption (W) 1.5
Maximum absorption (W) 3.5
HARDWARE FEATURES
Call type Buttons
Type of buttons Mechanic
Number of buttons (n°) 2
Backlight color White, Off
Bornes LL V+ V- COM NC NO SE+ SE-/GND RTE TX- TX+ RX- RX+
Number of entries (n°) 1
Number of exits (n°) 2
Type of outputs Relay (C-NO-NC, 4A@12÷24 VAC/VDC, 10A peak), SE: 4A unlocking pulse, 200mA holding current for 12VAC/DC locks (maximum impedance 18 Ohm)
Communication ports Micro-USB
Twilight sensor Yeah
SETTINGS
Speaker volume Yeah
Microphone volume Yeah
Backlight brightness Yeah
PROGRAMMING MODE
Manual configuration (using Dip Switch) Yeah
Software ViP Manager Yeah
ENVIRONMENTAL AND COMPLIANCE FEATURES
IP protection index IP65
Vandal-resistant rating (IK Code) IK08
Operating temperature (°C) -25 ÷ 55
Operating humidity (RH max) (%) 25 ÷ 95
Environmental class IV
ENVIRONMENTAL AND COMPLIANCE FEATURES
CE Certifications RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011)
MAIN FUNCTIONS
Door opening Yeah
Number of auxiliary relays (n°) 1
Input for local door opening button Yeah
Open door signage entrance Yeah
Visual indications of system status Yeah
Acoustic signals of system status Yeah
System state speech synthesis Yeah
More Information
EAN8023903399967
Hight0.070
Length0.080
Width0.070
ACCESOS - SISTEMASimplebus (2 threads)
ACCESOS - SERIEULTRA
ColorSilver
Color Portero/VideoporteroColor
Typereplacement
Product BrandComelit
