Comelit Ultra Simplebus2 Black Audio/Video Module

SKU

COMUT2020B

Brands: Comelit

Availability: On request

Delivery: 1 to 7 days

€361.84 Tax included

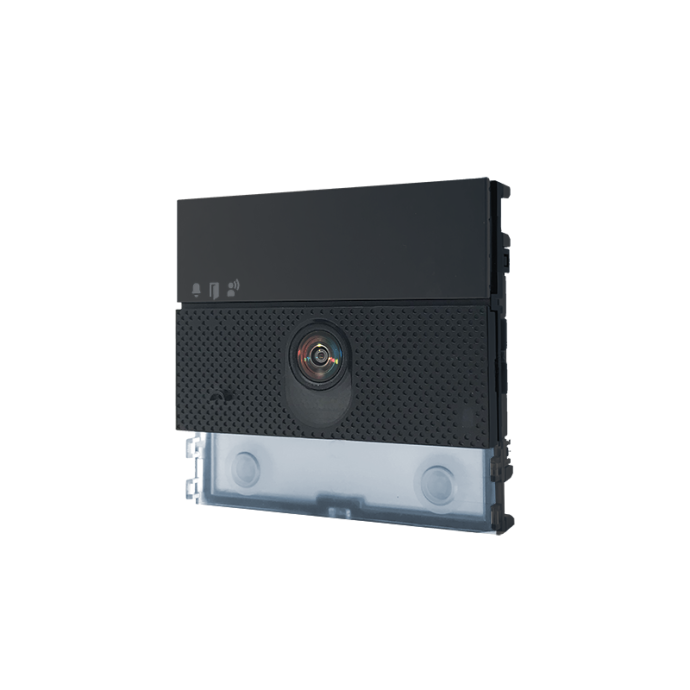

Comelit Ultra Black Audio/Video Module UT2020B for Ultra Black Boards

This module is used for Simplebus 2 video door entry systems, for Ultra series panels. It allows us to expand the functionality of the system, facilitating the integration of more devices or extending the coverage of the installations.

It can be used in systems with 1210/1210A power supply. It is very easy to configure and install thanks to the intelligent programming of the call buttons. It has 2 call buttons, audio and video signaling to assist people with disabilities, wide-angle color camera and twilight sensor for automatic shutdown of the backlighting of the cardholders during the day.

Its dimensions are 100 x 90 x 35mm. It is made of aluminum in black RAL 9005. color.

Details

Technical Specifications of the Comelit UT2020B Audio/Video Module for Comelit Ultra Black Boards

GENERAL INFORMATION

- Type: Modular
- Height: 90 mm
- Width: 100 mm
- Depth: 35 mm
- Product color: Aluminum, Black RAL9005, Transparent
- Product weight: (g) 350
- Cladding material type: Polycarbonate, Aluminum alloy
- Flush mount: Yes, with a dedicated fixture
- Wall mount: Yes, with a dedicated fixture.

SUPPORTED SYSTEMS

- Audio/video Simplebus 2 with power supply art. 1210/1210A. Yes

AUDIO FEATURES

- Microphone: MEMS digital audio sensor, omnidirectional
- Speaker: 28mm (Ø), 8 Ohm, 1W (2)
- Implemented Technologies: Full-Duplex

CAMERA FEATURES

- Camera: Color
- Sensor type: 1/3" CMOS
- Lens optical dimensions: 1.79 mm
- Viewing angle: 120 x 90 H x V - °
- Sensitivity: 0.45 lux
- Video resolution: 1288 x 968 H x V - pixel

ELECTRICAL CHARACTERISTICS

- Power supply type Power supply from the video door phone bus
- Supply voltage: 33VDC
- Stand-by absorption: 1.5 W
- Maximum absorption: 6 W

HARDWARE FEATURES

- Call type: Buttons
- Button type: Mechanical
- Number of buttons: 2
- Backlight color: White, Off
- Terminals: L L L V+ V- COM NC NO NO SE+ SE-/GND RTE TX- TX+ RX- RX+
- Number of inputs: 1
- Number of outputs: 2
- Type of outputs: relay (C-NO-NC, 4A@12÷24 VAC/VDC, 10A peak), SE: 4A unlocking pulse, 200mA holding current for 12VAC/DC locks (max impedance 18 Ohm)
- Communication ports: Micro-USB
- Twilight sensor: yes.

SETTINGS

- Speaker volume: Yes
- Microphone volume: Yes
- Backlight brightness: Yes
- Backlight brightness: Yes
- Microphone volume: Yes
- Backlight brightness: Yes
- Backlight brightness: Yes

PROGRAMMING MODE

- Manual configuration (via Dip Switch): Yes
- ViP Manager software: Yes

ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS

- Protection rating: IP65
- Vandal resistant rating (IK Code): IK08

ENVIRONMENTAL AND COMPLIANCE CHARACTERISTICS

- Operating temperature: -25 ÷ 55 °C
- Operating humidity (RH max): 25 ÷ 95 %
- Environmental class: IV
- Certifications: CE RoHS II - 2011/65/EU (EN IEC 63000:2018), EMC 2014/30/EU (EN 61000-6-1:2007 , EN 61000-6-3:2007+A1:2011).

MAIN FUNCTIONS

- Door opening: Yes
- Number of auxiliary relays: 1
- Local door open button input: Yes
- Door open signaling input: Yes
- Visual indications of system status: Yes
- Acoustic signals of system status: Yes
- Speech synthesis of system status: Yes
- Acoustic signals of system status: Yes
- Speech synthesis of system status: Yes
- Visual indications of system status: Yes
- Visual indications of system status: Yes
- Acoustic signals of system status: Yes
