Compact Transmodulator Octo DVB S/S2/MS to COFDM/QAM 8S8

SKU
EKCOMPACT-8S8
Brands: EKSELANS
€3,652.99 Tax included
Free shipping
(Iberian Peninsula)
EKSELANS
Availability: In stock
24/48 Hours

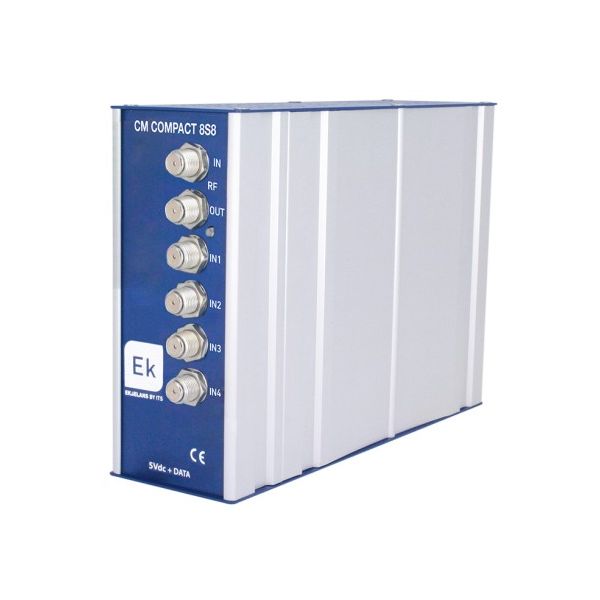

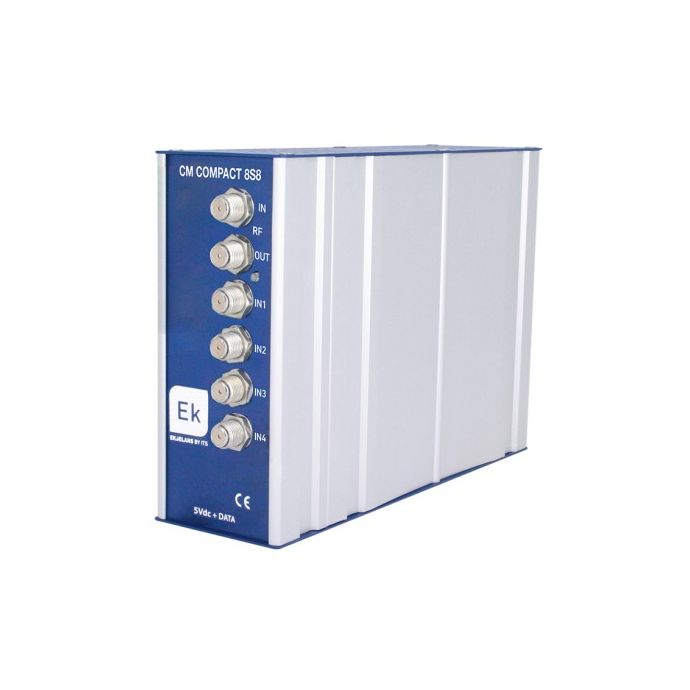

Compact 8S8 Transmodulator 4 Inputs and 8 Turners

This satellite device generates different signals that come from different TVSAT transponders received via satellite. It has 4 satellite inputs and 8 turners, with independent control of each input. 8 RF output channels (4+4 adjacent)

It has a status LED, which indicates the status of the COFDM/QAM modulated output.

The transmodulator is equipped with a ventilation grille to prevent it from reaching high temperatures and a micro-USB communication port for connection to a PC. The transmodulator comes with two tabs to be able to fix it to the wall directly.

With the CM Management software, which you can download via the web, you can manage and program the module connected to the PC.

Technical Specifications of the Compact 8S8 Transmodulator 4 Inputs and 8 Turners



Reference   CM COMPACT 8S4 CM COMPACT 8S8
Code
INPUT
Number of tuners   8 8
input connectors   4 4
input frequency MHz 950 - 2150 950 - 2150
Input level dBμV 40 - 79 40 - 79
Channel bandwidth MHz 36 36
Symbol rate MSps 1 - 45 1 - 45
Modulation type   QPSK  / 8PSK / 16APSK / 32APSK QPSK  / 8PSK / 16APSK / 32APSK
Telefeeding (LNB) V / KHz 13/18 - 0/22 (400mA max.) 13/18 - 0/22 (400mA max.)
DiSEqC   A / B / C / D A / B / C / D
EXIT
Number of outlets   1 1
Mix port dB <1,5 <1,5
Output frequencies MHz 170 - 862 170 - 862
Maximum output level dBμV 95 95
Output regulation dB 20 20
DVB-T modulation
Number of channels   4 adjacent 8 two groups of 4+4 adjacent
Output frequency MHz 170 - 862 170 - 862
Constellation - Mode   QPSK, 16QAM, 64QAM - 2K QPSK, 16QAM, 64QAM - 2K
FEC   1/2, 2/3, 3/4, 5/6, 7/8 1/2, 2/3, 3/4, 5/6, 7/8
Guard interval   1/4, 1/8, 1/16, 1/32 1/4, 1/8, 1/16, 1/32
MER dB >35 >35
DVB-C modulation
Number of channels   4 adjacent 8 two groups of 4+4 adjacent
Output frequency MHz 50 - 862 50 - 862
Constellation   16, 32, 64, 128, 256QAM 16, 32, 64, 128, 256QAM
Symbol rate Mbps 4 … 6,96 4 … 6,96
MER dB >40 >40
GENERAL
Local programming   Via USB cable (included) Via USB cable (included)
Feeding Vdc 5 (Font included) 5 (Font included)
Consumption (Without LNB) mA 1800 2300
Operating temperature ºC 0 - 40 0 - 40
Measurements (includes connectors) mm 160 x 55 x 200 160 x 55 x 200
More Information
EAN8436548996871
Hight0.600
Length0.250
Width0.150
System SAT8IN - 4OUT
SERIE SATCompact
Length0.5 meters
ColorBlue
Product BrandEKSELANS
