Safire ARM-5N1-4K CCTV Signal Tester

SKU
SF-TESTER-ARM-5N1-4K
Brands: Safire
€192.39 Tax included
14% Discount for professionals
Safire
Availability: In stock
24/48 Hours
Be the first to review this product

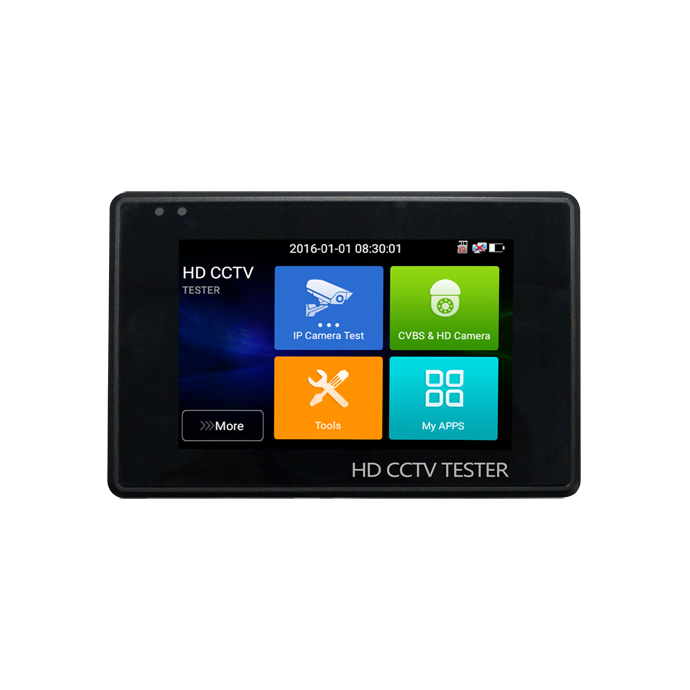

Safire wrist ARM-5N1-4K CCTV signal tester

This device will facilitate your work because it is portable, adaptable to the wrist, as if it were a watch. Tool that any installer may need to measure signals in CCTV. It has a 4” color screen and a resolution of 800x400, which makes its use very simple and intuitive. In addition, you can adjust its brightness, contrast and saturation settings from the screen.

It supports the following formats: HDTVI/HDCVI/AHD/Analog/CVBS/IP (4K). It has different inputs where you can perform measurements, such as BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN) and audio.

You will not need cables since it comes with a 7.4V 2400mAh Lithium battery, so it will have an autonomy that will allow you to work all day without problems.

The tester allows you to control and analyze PTZ in multiple protocols.

Box contents:

- SAFIRE multifunctional CCTV tester
- AC / DC 12V / 3.0 A adapter
- Probes for tester
- Cables and connectors for tester
- Instructions for use

-
+

Technical Specifications of the Safire Wrist CCTV Signal Tester ARM-5N1-4K

Description:

- Multifunctional wrist CCTV tester for HDTVI, HDCVI, AHD, analog CVBS and IP cameras
- LCD 4 "touch screen
- Resolution 800x480
- Decode the image of cameras up to 8 Mpx HDTVI, HDCVI, AHD, CVBS and IP
- BNC video input
- Audio input / output
- Multi-protocol PTZ controller and analyzer
- Lithium rechargeable battery 7.4V 2.4Ah
- DC 12V power and PoE power outputs
- Multi-language menu





Brand

SAFIRE

Screen

TFT-LCD 4” resolution 800×480

Formats

HDTVI/HDCVI/AHD/Analogic/CVBS/IP (4K)

Video settings

Brightness, contrast and saturation

Inputs

BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN), Audio

Outpust

No

PTZ

RS485

Comunication

WiFi, RJ45 10/100/1000M

Cable Tester

independent accessory

Tools

Cable information tool RJ45 |hard drive capacity calculation tool | Test TDR RJ45

Power

Lithium battery 7.4 V 2400 mAh

Charger

DC 12V 3A

Operating Temperature

-10º C ~ +50º C

Dimensions / Weight

126 mm x 83 mm x 33 mm / 320 g

Content:

  • SAFIRE multifunctional CCTV tester
  • AC / DC 12V / 3.0 A adapter
  • Probes for tester
  • Cables and connectors for tester
  • Instructions for use
More Information
More Information
EAN 8435325437125
Hight 0.060
Length 0.150
Width 0.130
Color Black
System Not intelligent
SERIE Accessories
Product Brand Safire
Reviews
Write Your Own Review
You're reviewing:Safire ARM-5N1-4K CCTV Signal Tester
Your Rating
Product Attachment
File Label Size Download
pdf Ficha Técnica Comprobador de señal CCTV SAfire ARM-5N1-4K 172.7 KB Download
