Stand-Alone Mini Controller 1 Door Wiegand 26 Fermax

SKU
FER5276
Brands: Fermax
€86.36 Tax included
Fermax
Availability: In stock
24/48 Hours

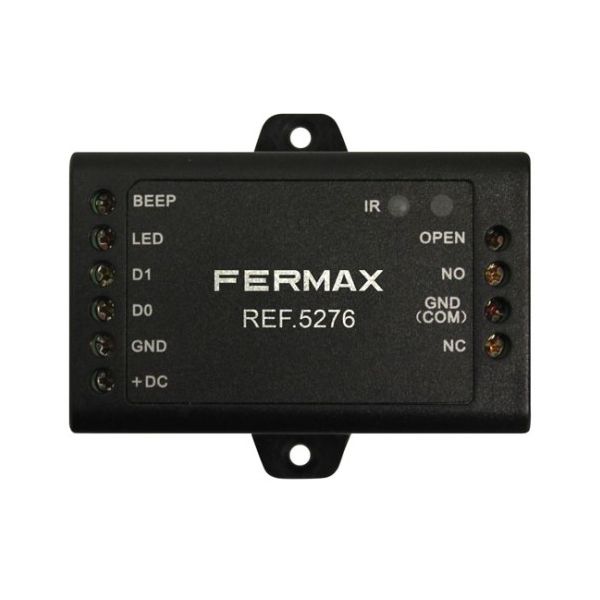

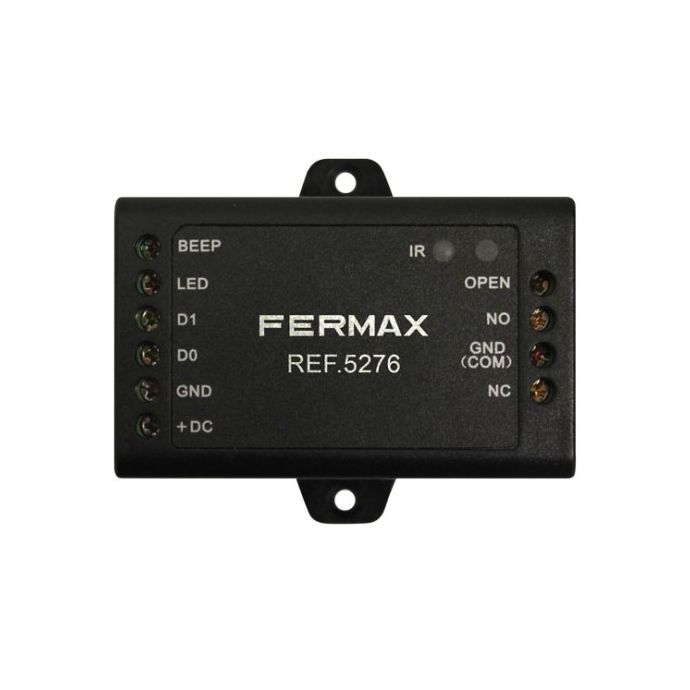

Stand-Alone Mini Controller Wiegand 1 Door Fermax 5276

Autonomous 1-door controller, Wiegand 26 protocol, for proximity access control system and keypad. Compatible with Fermax 5296 and 5293 proximity readers.

This controller is used in those cases in which we want to configure an access control in standalone mode. It allows you to register and cancel cards or key rings, as well as the configuration of PIN codes. It includes an infrared programming keyboard for programming and maintenance of the installation.

The Wiegand controllers provide the access control installation with an anti-sabotage security by incorporating the door opening mechanism and the exit button connection.



1 Door Stand-Alone Mini Controller for Wiegand Access Control System

What technical specifications does the Fermax 5276 Stand-Alone Controller have?

  • User capacity: 1,000
  • Access modes: Card, Card or Keyboard (PIN), card + keyboard (PIN)
  • Power supply: 12Vdc (9-24VDC)
  • Standby / operating consumption: 20mA / 110mA
  • Adjustable output time: Can be configured internally for dry contact (potential free). 1-99 seconds (5 seconds programmed by default)
  • Protocol: Wiegand 26bits
  • Material: ABS
  • Operating temperature: -20ºC to + 60ºC
  • Dimensions: 54mm × 65mm × 9mm
More Information
EAN8424299052762
Hight0.120
Length0.030
Width0.110
ACCESOS - SISTEMAReaders
ACCESOS - SERIEWiegand
ColorBlack
InstallationIndoor
IdentificationEM Card/Keychain, MIFARE Card/Keychain, Password
Product BrandFermax
