Cu/Cu Coaxial Cable Class A Euroclass Dca (100m)

SKU
TEL214121B
Brands: Televes
€102.15 Tax included
Availability: In stock
24/48 Hours

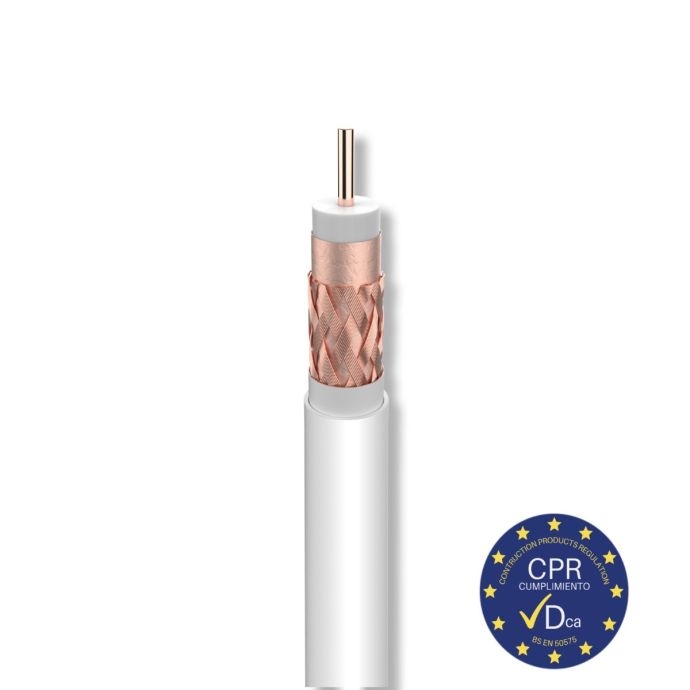

Coaxial Cable T100Plus Cu/Cu Class A Euroclass Dca Televes 214121 (100m)

T100plus Coaxial Cable manufactured with Copper (Cu/Cu) conductor and mesh, with white LSFH halogen-free outer sheath for indoor installation.

Cable composed of 2 layers of shielding Class A that offers great shielding against possible interferences. Its Euroclass Dca classification gives it a good reaction in the event of fire, as it does not spread the flame and reduces heat emission.

Its conductors made of copper offer great response in high and low frequencies, with the least radioelectric resistance.

-
+

T100plus Cu/Cu double-shielded Class A coaxial cable with LSFH sheath and Euroclass Dca

What are the main characteristics of the Televes 214121 Coaxial Cable?

  • Copper conductors
  • Class A shielded
  • Dca-s2,d2,a1 Euroclass
  • The anti-migrating film prevents sheath's additive agents and humidity migration to the inner cable, thus avoiding deterioration in the characteristics
  • White-colour external LSFH sheath
  • 75 Ohm characteristic impedance
  • Available in reels of different lengths

What technical specifications does the Televes 214121 Coaxial Cable have?

Type T100plus
Standard EN 50117-2-4
EuroClass Dca-s2,d2,a1
Class A
Inner conductor Ø mm 1,13
Material CU
Res. Ohm/Km <20
Dielectric Ø mm 4,8
Material PEE
Overlapped foil Copper + Polyester
Braid Material Cu
Dimensions (Ncx Nsx Ø) 16 x 4 x 0.10
Res. Ohm/Km <20
Coverage % 38
Anti-migrating film Yes
Petrol-Jelly No
Outer sheath Ø mm 6,6
Material LSFH
Minimum bending radius mm 33.5
Screening attenuation @ 1GHz dB >75
Capacitance pF/m 55
Impedance Ohm 75
Transfer impedance (5-30MHz) mOhm/m ≤15
Velocity ratio % 82
Attenuations (dB/m)
Frequency (MHz)
5 0,01
47 0,04
90 0,05
200 0,08
500 0,13
800 0,16
1000 0,19
1350 0,22
1750 0,25
2050 0,26
2300 0,3

More Information
EAN 8424450212424
Hight 0.000
Length 0.000
Width 0.000
System DTT RG6
Serie 100m
Entorno Interior
Color White
Cobertura Exterior Cables PVC
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Tinned Copper (CuSn)
Product Brand Televes
