Cu/Cu Coaxial Cable Class A++ Euroclass Cca (100m)

Name: Cu/Cu Coaxial Cable Class A++ Euroclass Cca (100m)
Brand: Televes
SKU: TEL414901B
Price: 148.98 EUR
Availability: InStock

SKU

TEL414901B

Brands: Televes

€148.98 Tax included

Availability: On request

Delivery: 1 to 7 days

Be the first to review this product

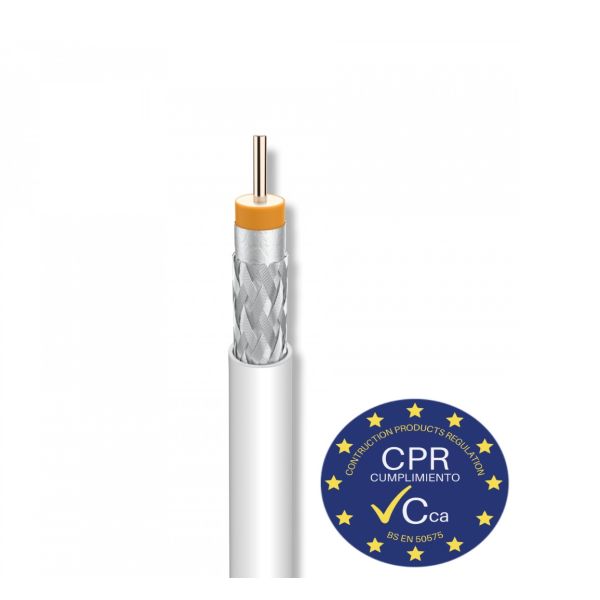

Coaxial Cable SK2015plus Euroclass Cca Class A ++ Televes 414901

Indoor 75Ω coaxial cable made with Copper (Cu) conductor and mesh and LSFH outer sheath, UV resistant, in white.

Its triple shielding (TSH) Class A++ makes this cable ideal for routes with high levels of electromagnetic noise. This cable complies with the Euroclass Cca standard of non-propagation of the flame and with the limits of heat emitted for this class.

Details

Coaxial Cable Cu/Cu Euroclass Cca Class A++ Indoor LSFH White UV resistant

What are the main characteristics of the Televes 414901 Coaxial Cable?

Conductors made of copper
Class A++ shielding
Euroclass Cca
LSFH outer cover, UV resistant, in white
Characteristic impedance of 75 ohm
Available on reels of different footage

What technical specifications does the Televes 414901 Coaxial Cable have?

Type		SK2015plus
Standard		EN 50117-2-4
Euroclass		Cca
Class		A++
Central conductor	Ø mm	1,05
	Material	Cu
	Res. Ohm/Km	22
Dielectric	Ø mm	4,6
Dielectric	Material	Expanded polyethylene
Inner foil		Aluminium + Polyester
Mesh	Material	CuSn (98%Cu)
	Dimensions (Nc x Ns x Ø)	24 x 7 x 0,10
	Res. Ohm/Km	<11
	% coverage	82
2nd shield sheet		Sí
Petro-Gel		No
Outer coverage	Ø mm	6,9
Outer coverage	Material	LSFH, UV Resistant
Minimum bend radius	mm	34,5
1GHz shielding	dB	>105
Capacity	pF/m	54
Impedance	Ohm	75
Transfer Impedance (5-30MHz)	mOhm/m	<0,9
Propagation velocity min.	%	82
Atenuation(dB/m)
Frequency (MHz)
	200	0,09
	500	0,14
	800	0,18
	1000	0,21
	1350	0,24
	1750	0,28
	2050	0,3
	2300	0,31

More Information

More Information
EAN	8424450199015
Hight	0.000
Length	0.000
Width	0.000
System DTT	RG6
Serie	100m
Entorno	Exterior
Color	White
Cobertura Exterior Cables	LSFH
Conductor Interno Cables	Copper (Cu)
Material Malla Coaxial	Tinned Copper (CuSn)
Product Brand	Televes
