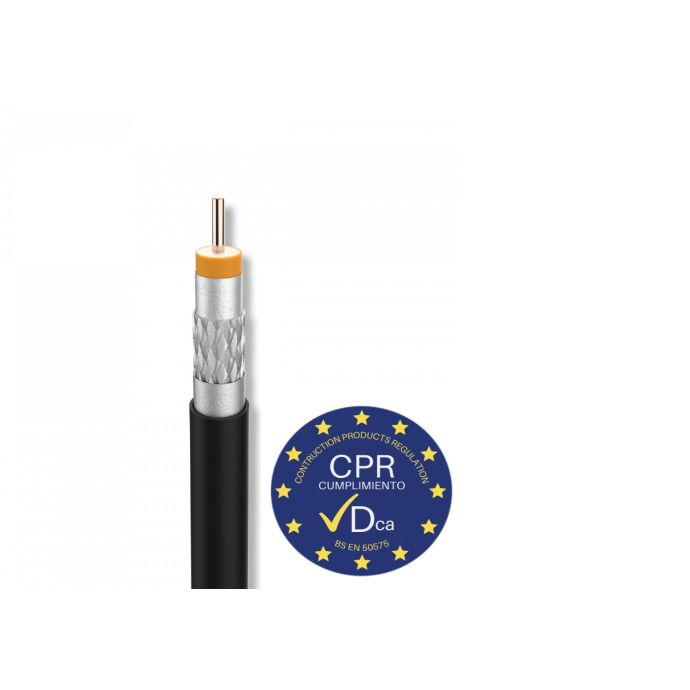

main product photo

Cu/CuSn SK2003plus Dca TSH Outdoor Coaxial Cable (250m)

SKU
TEL414003C
Brands: Televes
€275.34 Tax included
Free shipping
(Iberian Peninsula)
13% Discount for professionals
Televes
Availability: On request
1 to 7 days
Be the first to review this product

Cu/CuSn Coaxial Cable Euroclass Dca Triple Shield LSFH Outdoor Sheath Televes 414003

Outdoor coaxial cable with live copper (Cu) and tinned copper braid (CuSn) with excellent braiding coverage (82%). Triple Shielded (TSH) cable designed for high noise runs. UV resistant LSFH sheath.

SK2003plus is a 75ohms Euroclass Dca coaxial cable suitable for ICT2 installations, with class A+ shielding that has an additional second layer of extra shielding. Black outdoor cable supplied in a 250 meter coil.

High quality cable with internal copper conductor for low electrical resistance and excellent response in high and low frequencies (5-3000 MHz). Ideal for special fire safety installations.

It complies with the national regulations of Portugal (ITED), Spain (ICT-2) and France (C90-132).



-
+

Cu/CuSn Coaxial Cable SK2003plus Euroclass Dca with Triple Shield and LSFH sheath for Outdoor (250m)

What technical specifications does the Televes 414003 Coaxial Cable have?

Type   SK2003plus
Standard   EN 50117-2-5
Euroclass   Dca
Euroclass: Smoke Production   s2
Euroclass: Flaming droplets   d2
Euroclass: Acidity   a2
Class   A+
Inner conductor Diameter mm 1.02
Inner conductor Material   Copper (Cu)
Inner conductor Resistance Ω/km <22
Dielectric Diameter mm 4.6
Dielectric Material   Foam polyethylene (PEE)
Dielectric Color   Orange RAL 1007
Overlapped foil   Aluminium + Polyester
Braid Material   Tinned copper (CuSn)
Braid dimensions: No. of carriers (Nc)   24
Braid Dimensions: No. of strands per carrier (Ns)   7
Braid Dimensions: strand diameter (Ø) mm 0.1
Braid Resistance Ω/km <10.5
Braid Coverage % 82
2nd foil   Yes
2nd foil glued to the dielectric   No
Petrol-Jelly   No
Anti-migrating film   No
Outer sheath Diameter mm 6.7
Outer sheath Material   LSFH, UV-resistant
Outer sheath Thickness mm 0.3
Minimum bending radius mm 33.5
Transfer impedance (5-30MHz) mΩ/m <2.5
1GHz shielding dB > 95
Spark Test Vac 3000
Capacitance pF/m 54
Impedance Ω 75
Velocity ratio % 84
Operating temperature °C -25 ... 70
Frequencies
5 MHz 47 MHz 54 MHz 90 MHz 200 MHz 500 MHz 698 MHz 800 MHz 862 MHz 950 MHz 1000 MHz 1220 MHz 1350 MHz 1750 MHz 2050 MHz 2150 MHz 2200 MHz 2300 MHz 2400 MHz 3000 MHz
Attenuation (typ.) dB/m
0.02 0.05 0.05 0.06 0.09 0.14 0.17 0.18 0.19 0.19 0.21 0.22 0.24 0.28 0.3 0.31 0.31 0.32 0.33 0.36
More Information
More Information
EAN 8424450179338
Hight 0.000
Length 0.000
Width 0.000
System DTT RG6
Serie 250m
Entorno Exterior
Color Black
Cobertura Exterior Cables PE
Conductor Interno Cables Copper (Cu)
Material Malla Coaxial Tinned Copper (CuSn)
Product Brand Televes
