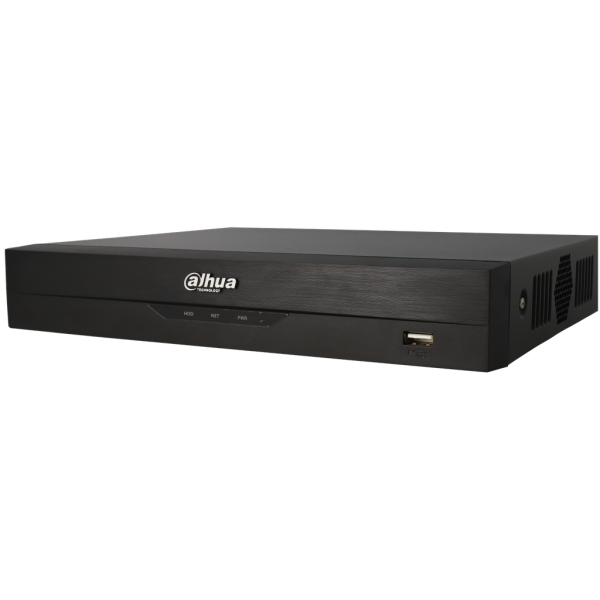

Dahua 16 Channel Hybrid DVR 2Mpx 2 Channel IP 6Mpx 4 Series DVR

SKU
DAH-XVR4116HS-I
Brands: Dahua
€163.47 Tax included
Availability: On request
1 to 7 days

Dahua 16 Channel Hybrid 2Mpx 2 Channel IP 6Mpx DVR DVR DVR 4 Series



This recorder has 18 IP channels. It is a DVR recorder from Dahua, compatible with video resolutions: H.265+ and H.265.

It has simultaneous HDMI and VGA outputs. In addition to a resolution of Mpx and capacity for 1 hard disk up to 6TB. Different alarm modes available: motion detection, video loss, tampering thanks to the filtering of people and motor vehicles.

The recorder is capable of using up to 18 IP channels, 2 of which are default and the other 16 are analog but can be converted to IP channels. With this recorder what we do is to reduce false alarms caused by leaves, rain and changes in lighting conditions.

Dahua WIZSENSE recorders are designed to take advantage of video surveillance with artificial intelligence. They are easy to configure for any end user and thus enhance the recognition and intrusion detection features. Among other of the main functions that SMD Plus has

If you combine this recorder with cameras with the same WizSense technology you get a maximum of 2% error rate.

Thanks also to the artificial intelligence it has the face recognition functionality which, for example, if you enter a photo of a user allows you to know how many times it has appeared, looking for it in the recorder's database.

-
+

Dahua 16 Channel Hybrid 2Mpx 2 Channel IP 6Mpx DVR DVR 4 Series

System

Main Processor



Industrial-grade processor

Operating System



Embedded Linux

Operating Interface



Web; Local GUI

SMD Plus

SMD Plus by Recorder



8 channels: Secondary filtering for human and vehicle, reducing false alarms caused by leaves, rain and lighting condition change

Audio and Video

Analog Camera Input



16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect

Camera Input



1. CVI: 1080p@25/30 fps; 720p@25/30 fps.

2. TVI: 1080p@25/30 fps; 720p@25/30 fps.

3. AHD: 1080p@25/30 fps; 720p@25/30 fps.

IP Camera Input



Up to 18 channels of IPC access

2 IP channels by default + 16 channels (analog channels are converted to IP channels)

Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps

*After IP extension is enabled, the AI Function (SMD) will be disabled.

Encoding Capacity



Main stream: the 1st channel 1080N/720p@(1 fps–25/30 fps), others 1080N/720p@(1 fps–15 fps); 960H/D1/CIF@(1 fps–25/30 fps)

Sub stream: CIF@(1 fps–7 fps)

Dual-stream



Yes

Video Bit Rate



32 kbps–4096 kbps

Audio Sampling



8 kHz, 16 bit

Audio Bit Rate



64 kbps

Video Output



1 HDMI, 1 VGA

HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720

VGA: 1920 × 1080, 1280 × 1024, 1280 × 720

Multi-screen Display



When IP extension mode not enabled: 1/4/8/9/16

When IP extension mode enabled: 1/4/8/9/16/25

Third-party Camera Access



Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

Compression Standard

Video Compression



AI Coding; Smart H.265+; H.265; Smart H.264+; H.264

Audio Compression



G.711a; G.711u; PCM

Network

Network Protocol



HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)

Mobile Phone Access



iOS; Android

Interoperability



ONVIF 22.12 (Profile T; Profile S; Profile G); CGI; SDK

Browser



Chrome; IE; Safari; Edge; Firefox

Recording Playback

Record Mode



General; alarm; motion detection

Recording Playback



1/4/9/16

Backup Method



USB device and network

Playback Mode



Instant playback; general playback; event playback; tag playback; smart playback

Alarm

General Alarm



Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm

Anomaly Alarm



Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline

Intelligent Alarm



SMD Plus

Alarm Linkage



Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

Ports

Audio Input



1-channel RCA

16-channel BNC (Coaxial Audio)

Audio Output



1-channel RCA

Two-way Talk



Yes (share the same audio input with the first channel)

Disk Interface



1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.

RS-485



1

USB



2 (1 front USB 2.0 port, 1 rear USB 2.0 port)

HDMI



1

VGA



1

Network Port



1 (10/100 Mbps Ethernet port, RJ-45)

General

Power Supply



12 VDC, 2 A

Power Consumption



<10 W (without HDD)

Net Weight



1.04 kg (3.00 lb)

Gross Weight



1.48 kg (3.26 lb)

Product Dimensions



260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)

Packaging Dimensions



333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)

Operating Temperature



–10 °C to +55 °C (+14 °F to +131 °F)

Storage Temperature



–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity



10%–90% (RH), non-condensing

Installation



Desktop

Certifications



CE-LVD: IEC 62368-1:2014

CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

FCC: 47 CFR Part 15, Subpart B
