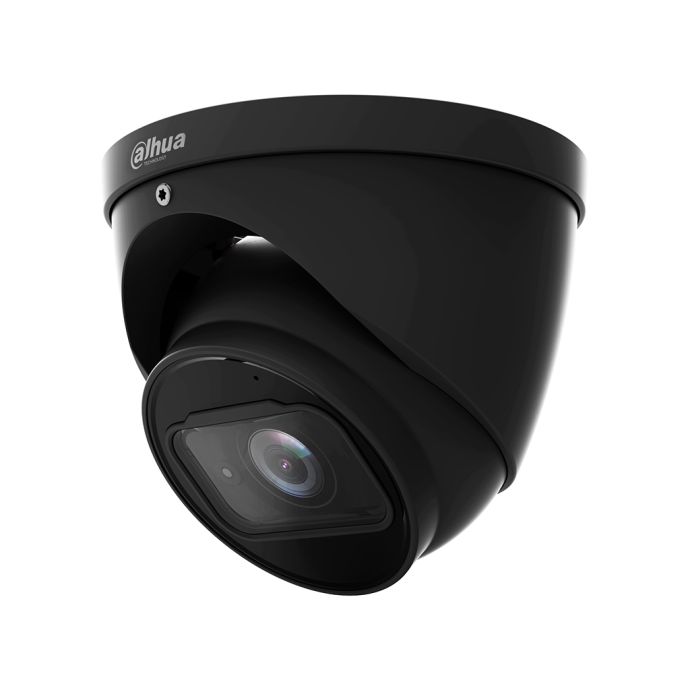

Dahua 2MP Varifocal Hybrid Turret Camera with 2.7-13.5mm LEDs and 60m Starlight Microphone

SKU
DAH-HAC-HDW2241T-Z-A-B
Brands: Dahua
€102.81 Tax included
Dahua
Availability: On request
1 to 7 days

Dahua Starlight 2Mpx 4 in 1 Camera and Varifocal Optics 2.7-13.5mm

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with varifocal optics with focal length from 2.7 to 13.5mm and optics resolution of 2Mpx.

Its night vision has an infrared range of up to 60 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 44m, observing, distinguishing between people, animals or vehicles at 17m, recognizing people between men and women at 8m and identifying a face at 4.4m, even visualizing a license plate.

For image enhancement against light exposure, the camera has starlight technology with 130dB digital WDR . It incorporates a microphone with noise reduction.

It is suitable for indoor and outdoor use and has an IP67 degree of protection. It is made of metal and has a net weight of 580gr.

Technical Specifications of the Dahua 4-in-1 Camera with 2MP Resolution and 2.7-13.5mm Varifocal Lens

Camera

Image Sensor

2MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Pixel

2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s

NTSC: 1/30 s–1/100000 s

S/N Ratio

> 65 dB

Min. Illumination

0.001Lux/F1.6, 30IRE, 0Lux IR on

Illumination Distance

60m (196.9 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tilt: 0°–78°

Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

Yes

Mount Type

φ14

Focal Length

2.7 mm-13.5mm

Max. Aperture

F1.5

Field of View

Diagonal: 131°~35°

Horizontal: 108°~30°

Vertical: 56°~17°

Iris Type

Fixed

Close Focus Distance

0.8 m (2.6 ft )

DORI Distance

2.7 mm: D: 44.1 m (144.7 ft); O: 17.6 m (57.7 ft); R: 8.8 m (28.9 ft); I: 4.4 m (14.4 ft)

13.5 mm: D: 144.8 m (475.1 ft); O: 57.9 m (190 ft); R: 28.9 m (94.8 ft); I: 14.8 m (48.6 ft)

Video

Frame Rate

CVI:

PAL:1080P@25fps;

NTSC:1080P@30fps;

AHD:

PAL:1080P@25fps;

NTSC:1080P@30fps;

TVI:

PAL:1080P@25fps;

NTSC:1080P@30fps;

CVBS:

PAL:960×576H;

NTSC:960×480H;

Resolution

1080P (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto switch by ICR

BLC

BLC/WDR/HLC

WDR

130dB

White Balance

Auto/Area WB

Gain Control

Auto; manual

Noise Reduction

3D NR

Smart IR

Yes

Mirror

Yes

Privacy Masking

Off/On (8 area, rectangle)

Certifications

Certifications

CE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port(DIP Switch)

Audio Input

One channel built-in mic

Power

Power Supply

12V ±30% DC

Power Consumption

Max 6.4W (12V DC, IR on)

Environment

Operating Temperature

–30°C~+60°C (-22°F to 140°F); ﹤ 95% (non-condensation)

Storage Temperature

–30°C~+60°C (-22°F to 140°F); ﹤ 95% (non-condensation)

Protection Grade

IP67

Structure

Casing

Metal throughout the whole casing

Camera Dimensions

φ122 mm × 104.8 mm (φ4.80" × 4.13")

Net Weight

0.58 kg (1.3 lb)

Gross Weight

0.74 kg (1.6 lb)

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMHibrid 4 on 1
SEGURIDAD - SERIETurret
TechnologyAHD, Analogic CVBS, HD-CVI, HD-TVI
ColorBlack
TipeTurret
EntornoExterior
Resolution2MP ~ 1080p
OpticsVarifocal
Product BrandDahua
