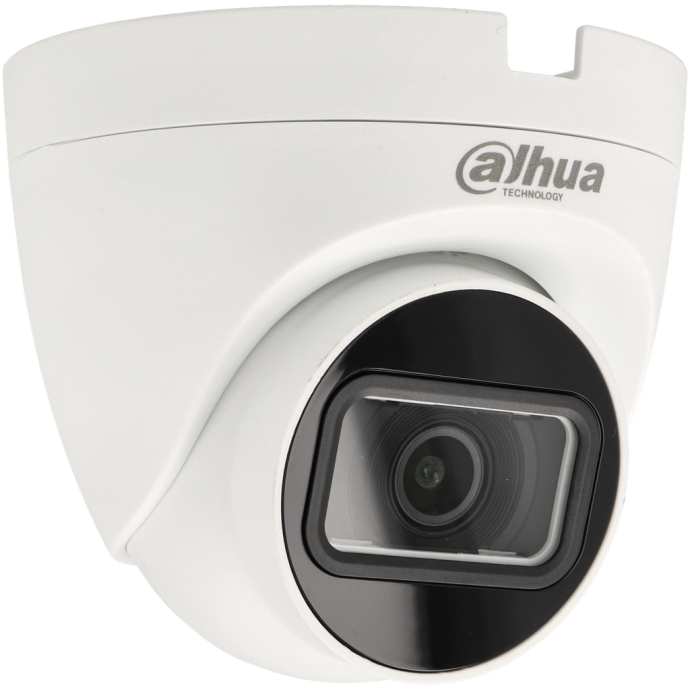

Dahua 2Mpx Fixed 2.8mm IR 25m Hybrid Turret Camera

SKU
DAH-HAC-HDW1200TRQ
Brands: Dahua
€22.02 Tax included
Dahua
Availability: On request
1 to 7 days

Dahua 4 in 1 Camera Lite Series 2Mpx and 2.8mm Fixed Optics

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with fixed optics with 2.8mm focal length and 2Mpx optical resolution. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 25 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 39m, observing, distinguishing between people, animals or vehicles at 15m, recognizing people between men and women at 8m and identifying a face at 4m, even visualizing a license plate.

It is a basic camera, but with many features and excellent value for money. For image enhancement against light exposure, the camera has digital DWDR technology. It incorporates a microphone with noise reduction.

It is suitable for indoor use, it has an IP50 degree of protection. It is made of plastic and has a net weight of 170gr.



Technical Specifications of the Dahua Lite Series 2Mpx 4-in-1 Camera with 2.8mm Fixed Lens

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.4 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

( 27.23 ft)

4.1 m

(13.45 ft)

3.6 mm

50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.7 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Structure

Casing Material

Plastic

Product Dimensions

Φ97.1 mm × 93.0 mm (Φ3.82" × 3.66")

Net Weight

0.14 kg (0.31 lb)

Gross Weight

0.25 kg (0.55 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

More Information
Hight0.000
Length0.000
Width0.000
SECURITY - SYSTEMHibrid
SEGURIDAD - SERIETurret
TechnologyAHD, Analogic CVBS, HD-CVI, HD-TVI
ColorWhite
TipeTurret
EntornoInterior
Resolution2MP ~ 1080p
OpticsFixed
Product BrandDahua
