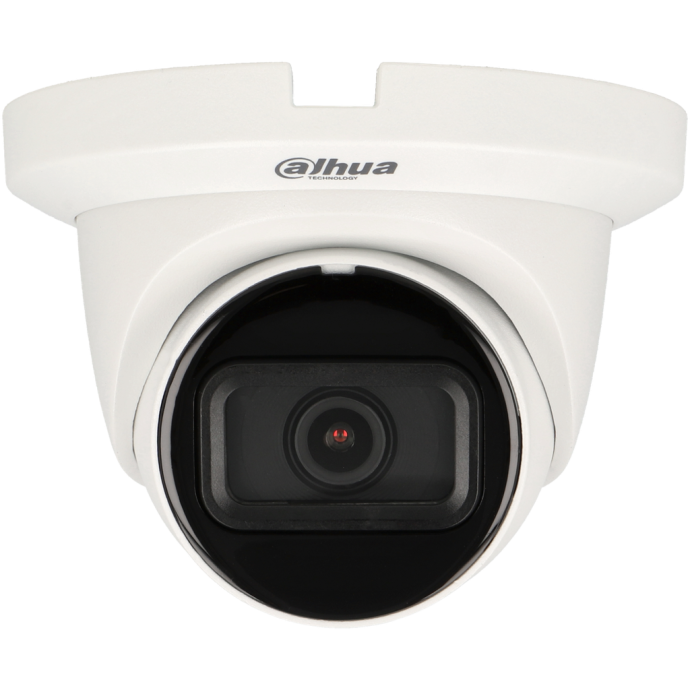

Dahua 2Mpx Fixed 2.8mm IR 30m Hybrid Turret Camera

SKU
DAH-HAC-HDW1200TLMQ
Brands: Dahua
€29.65 Tax included
Availability: On request
1 to 7 days

Dahua Lite Series 2Mpx 4 in 1 Camera with 2.8mm Fixed Optics

Hybrid 4 in 1 turret type camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with fixed optics with 2.8mm focal length and 2Mpx optics resolution. This camera belongs to the Lite series of Dahua.

The Lite series is Dahua's most economical range, but with an advanced sensor and ISP, it will provide excellent image quality with vivid colors and details, as well as a wider viewing angle.

Its night vision has an infrared range of up to 30 meters, which can be configured in automatic or manual mode. The DORI distance (Detect, Observe, Recognize, Identify) is a general proximity of the distance that the camera will allow us in different actions and therefore will help us to choose the camera that comes closest to what we need. In this case, this camera is capable of: detecting moving objects at 39m, observing, distinguishing between people, animals or vehicles at 15m, recognizing people between men and women at 8m and identifying a face at 4m, even visualizing a license plate.

It is a basic camera, but with many features and excellent value for money. For image enhancement against light exposure, the camera has digital DWDR technology. It incorporates a microphone with noise reduction.

It is suitable for indoor or outdoor use and has an IP67 degree of protection. It is made of metal and plastic and has a net weight of 330gr.

-
+

Technical Specifications of Dahua 4 in 1 Pro Series 2Mpx Fixed Optics 2.8mm 4 in 1 Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto

Illuminator Number

1 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm;3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 105°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.4 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

( 27.23 ft)

4.1 m

(13.45 ft)

3.6 mm

50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 3.2 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Metal dome + metal enclosure + plastic mounting plate

Product Dimensions

Φ109.9 mm × 88.1 mm (Φ4.33" × 3.47")

Net Weight

0.33 kg (0.73 lb)

Gross Weight

0.44 kg (0.97 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid 4 on 1
SERIE Turret
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Turret
Entorno Exterior
Resolution 2MP ~ 1080p
Optics Fixed
Product Brand Dahua
