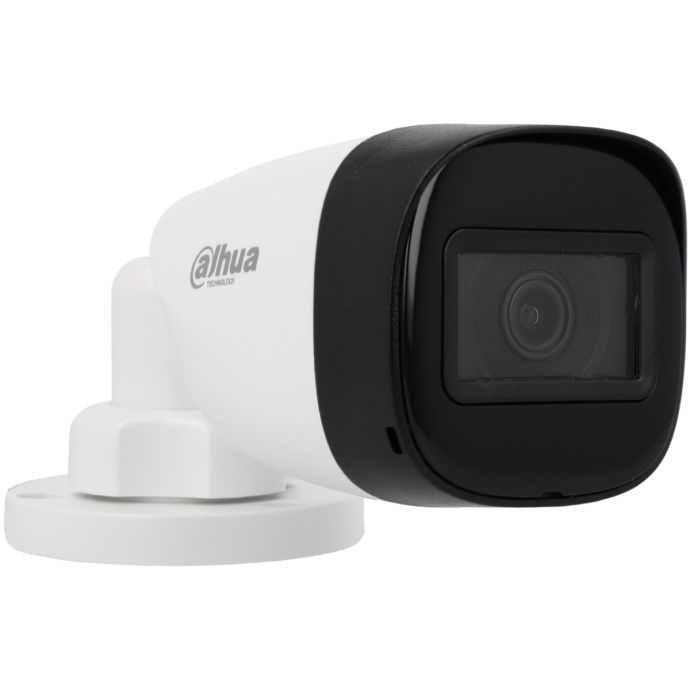

Dahua 2Mpx Fixed 3.6mm IR 30m Hybrid Bullet Camera

SKU
DAH-HAC-HFW1200C
Brands: Dahua
€24.56 Tax included
Availability: On request
1 to 7 days

Dahua 2Mpx Fixed 3.6mm IR 30m Hybrid Bullet Camera 2Mpx Fixed 3.6mm IR 30m

4 in 1 hybrid bullet camera with switchable output (we can choose HD-CVI / HD-TVI / AHD / CVBS), with fixed lens with 3. 6mm focal length and optical resolution of 2Mpx.

Its night vision has an infrared range of up to 30 meters away. For image enhancement in bright light, the camera has digital WDR technology. It incorporates a microphone with noise reduction.

This camera is capable of: detecting moving objects at 39m, observing, distinguishing between people, animals or vehicles at 15m, recognizing people between men and women at 8m and identifying a face at 4m, even visualizing a license plate.

It has an IP67 degree of protection, is made of plastic and has a net weight of 190 grams.

-
+

Technical Specifications of the Dahua Lite Series 2Mpx Fixed 3.6mm IR 30m Hybrid Bullet Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F2.0 (Color, 30 IRE)
0.001 lux@F2.0 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

30 m (98.43 ft)

Illuminator On/Off Control

Auto

Illuminator Number

2 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Lens Mount

M12

Focal Length

2.8 mm; 3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm: H: 102°; V: 60°; D: 129°
3.6 mm: H: 83°; V: 48°; D: 104°

Iris Control

Fixed

Close Focus Distance

2.8 mm: 0.5 m (1.64 ft)
3.6 mm: 0.7 m (2.30 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8 mm

41.4 m

(135.83 ft)

16.5 m

(42.13 ft)

8.3 m

( 27.23 ft)

4.1 m

(13.45 ft)

3.6 mm

50.9 m

(166.99 ft)

20.3 m

(66.60 ft)

10.2 m

(33.46 ft)

5.1 m

(16.73 ft)

Video

Video Frame Rate

CVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
AHD: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
TVI: PAL: 1080p@25 fps; NTSC: 1080p@30 fps;
CVBS: PAL: 960H; NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 2.8 W (12 VDC, IR on)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

Plastic

Product Dimensions

161.3 mm × 69.7 mm × 70.0 mm (6.35" × 2.75" × 2.75")

Net Weight

0.19 kg (0.55 lb)

Gross Weight

0.29 kg (0.64 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

More Information
Hight 0.000
Length 0.000
Width 0.000
System Hibrid 4 on 1
SERIE Bullet
Technology AHD, Analogic CVBS, HD-CVI, HD-TVI
Color White
Tipe Bullet
Resolution 2MP ~ 1080p
Optics Fixed
Product Brand Dahua
