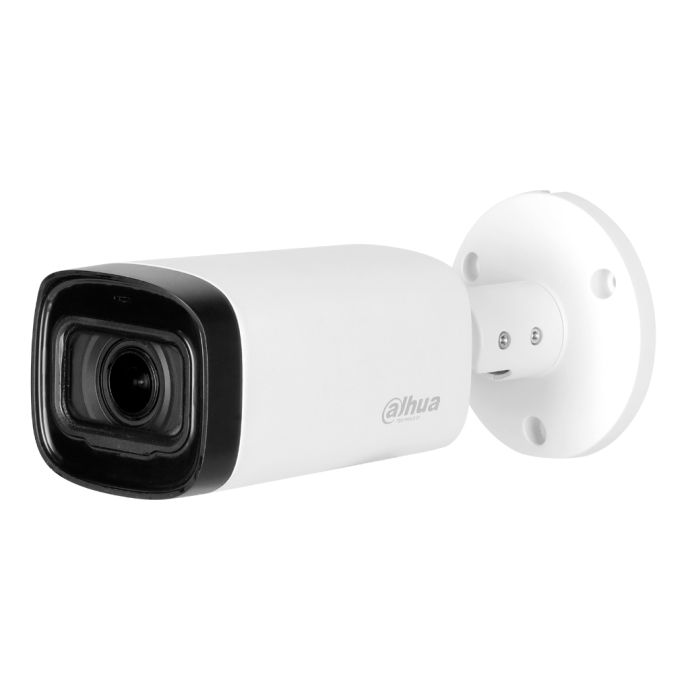

Dahua 2MPx Motorized Varifocal Hybrid Bullet Camera 2.7-12mm IR 80m Microphone

SKU
DAH-HAC-HFW1200R-Z-S6
Brands: Dahua
€69.12 Tax included
Dahua
Availability: In stock
24/48 Hours

Dahua 2MPx Varifocal Motorized 2.7-12mm IR Hybrid Bullet Camera 80m

Looking for a security camera that delivers crisp, clear images no matter what the conditions? Dahua's DAH-HAC-HFW1200R-Z-S6 is just what you need. This 2Mpx HDCVI bullet camera is designed to give you the best image quality, thanks to its 1600x1200 pixel resolution and 2.7-12mm varifocal lens. In addition, its Starlight technology guarantees an impressive night vision, with an IR range of up to 80 meters.

The DAH-HAC-HFW1200R-Z-S6 is perfect for a variety of uses, from home surveillance to business and office security, this camera adapts to any environment . Its waterproof and dustproof design(IP67) makes it ideal for outdoor use, while its ability to transmit video over long distances without loss of quality makes it a reliable choice for any installation.

Installation is very easy. Thanks to its compatibility with multiple video formats (HDCVI, CVBS, AHD, TVI), you can easily integrate it into your existing security system. Its wide dynamic range (WDR) of 120 dB ensures that you get clear and detailed images, even in difficult lighting conditions. And with its low power consumption, it is an efficient and economical choice for any security project.

In short, it's a robust, versatile and easy-to-use security camera that gives you peace of mind and round-the-clock protection. Whether you need to keep an eye on your home, business or anywhere else, this camera is the perfect choice to keep everything under control - enhance the security of your environment with Dahua's advanced technology!

Technical Specifications of the Dahua 2MPx Motorized Varifocal 2.7-12mm IR 80m Hybrid Bullet Camera

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Scanning System

Progressive

Electronic Shutter Speed

PAL: 1/25 s–1/100000 s
NTSC: 1/30 s–1/100000 s

Min. Illumination

0.01 lux@F1.6 (Color, 30 IRE)
0.001 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

S/N Ratio

>65 dB

Illumination Distance

80 m (262.47 ft)

Illuminator On/Off Control

Auto

Illuminator Number

4 (IR light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Motorized Vari-focal

Auto Focus

No

Lens Mount

φ14

Focal Length

2.7 mm–12 mm

Max. Aperture

F1.6

Field of View

H: 28.3°–98.2°; V: 15.8°–51.9°; D: 32.1°–116.7°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.7 mm

47.4 m
(155.51 ft)

18.9 m
(62.01 ft)

9.5 m
(31.17 ft)

4.7 m
(15.42 ft)

12 mm

155.6 m
(510.50 ft)

62.2 m
(204.07 ft)

31.1 m
(102.03 ft)

15.6 m
(51.18 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Video

Video Frame Rate

CVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960H;
NTSC: 960H

Resolution

1080p (1920 × 1080); 960H (960 × 576/960 × 480)

Day/Night

Auto(ICR)/Color/B/W

BLC

BLC; HLC; DWDR

WDR

DWDR

White Balance

Auto; Area white balance

Gain Control

Auto

Noise Reduction

3D NR

Illumination Mode

Smart IR

Mirror

Yes

Privacy Masking

Off/On (8 areas, rectangle)

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: EN 55032; EN 55035;
FCC: 47 CFR FCC Part 15, Subpart B;
UL: UL62368-1 + CAN/CSA C22.2 No. 62368-1-14

Port

Video Output

Video output choices of CVI/TVI/AHD/CVBS by one BNC port

Audio Input

One channel built-in Mic

Power

Power Supply

12 VDC ± 30%

Power Consumption

Max 9.4 W (12 VDC, IR on)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

<95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

<95% (RH), non-condensing

Protection

IP67

Anti-corrosion Level

Basic Protection

Structure

Casing Material

Metal

Product Dimensions

209.6 mm × 90.4 mm × 90.4 mm (8.30" × 3.56" × 3.56")

Net Weight

0.55 kg (1.21 lb)

Gross Weight

0.76 kg (1.68 lb)

Installation

Wall mount; ceiling mount; vertical pole mount

More Information
Hight0.200
Length0.100
Width0.200
SECURITY - SYSTEMHibrid 4 on 1
SEGURIDAD - SERIEBullet
TechnologyAHD, Analogic CVBS, HD-CVI, HD-TVI
ColorWhite
TipeBullet
EntornoExterior
Resolution2MP ~ 1080p
OpticsVarifocal
Product BrandDahua
